Bombensturm!

When British Bomber Command went to war in 1939 it found itself equipped with a very limited and inadequate arsenal of bombs.

General Purpose GP Bombs:

The high explosive GP (general purpose) bombs, developed from 1935, were the initial arsenal Bomber Command had to carry destruction to Third Reich soil and people, but these had a ineffective performance and their explosive-to-weight ratio was low.

During the first three years of the war, RAF bombers usually flew with a small bomb cargo. In the case of Bomber Command attacking German industries and cities, the normal load were 500-lb (227 kg) and 250-lb GP (114 kg) bombs for hard targets and 40-lb bombs in containers for “soft”, plus the 20-lb (F) anti-personnel fragmentation bomb used mainly on tactical missions. For the 20-lb and 40-lb bombs, purpose-made packing pieces secured the individual bombs as a cluster within each partition. This early series of HE bombs used an explosive mix called ‘Amatol’, a mixture of TNT and ammonium nitrate.

[Groundcrew of a Polish Air Force bomber squadron, very likely of No. 300 Squadron, scribbling their best wishes to the enemy on a 500-lb GP bomb at RAF Hemswell, 15 August 1941. The
inscription in Polish reads: ‘Warszawiacy Berlinowi - From Varsovians for Berlin’. 300 Sqn crews bombed Berlin for the first time during the mission made on 21 March 1941.]

[Photo: Imperial War Museums © IWM (HU 111733).]

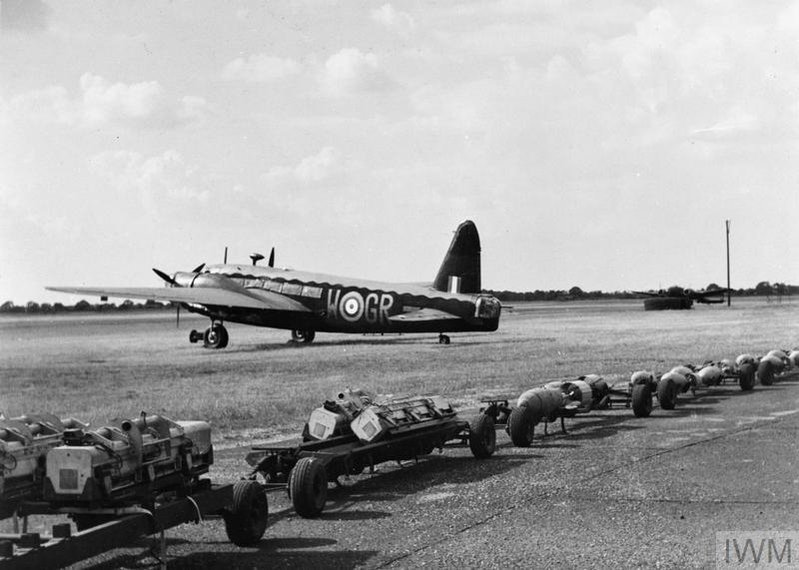

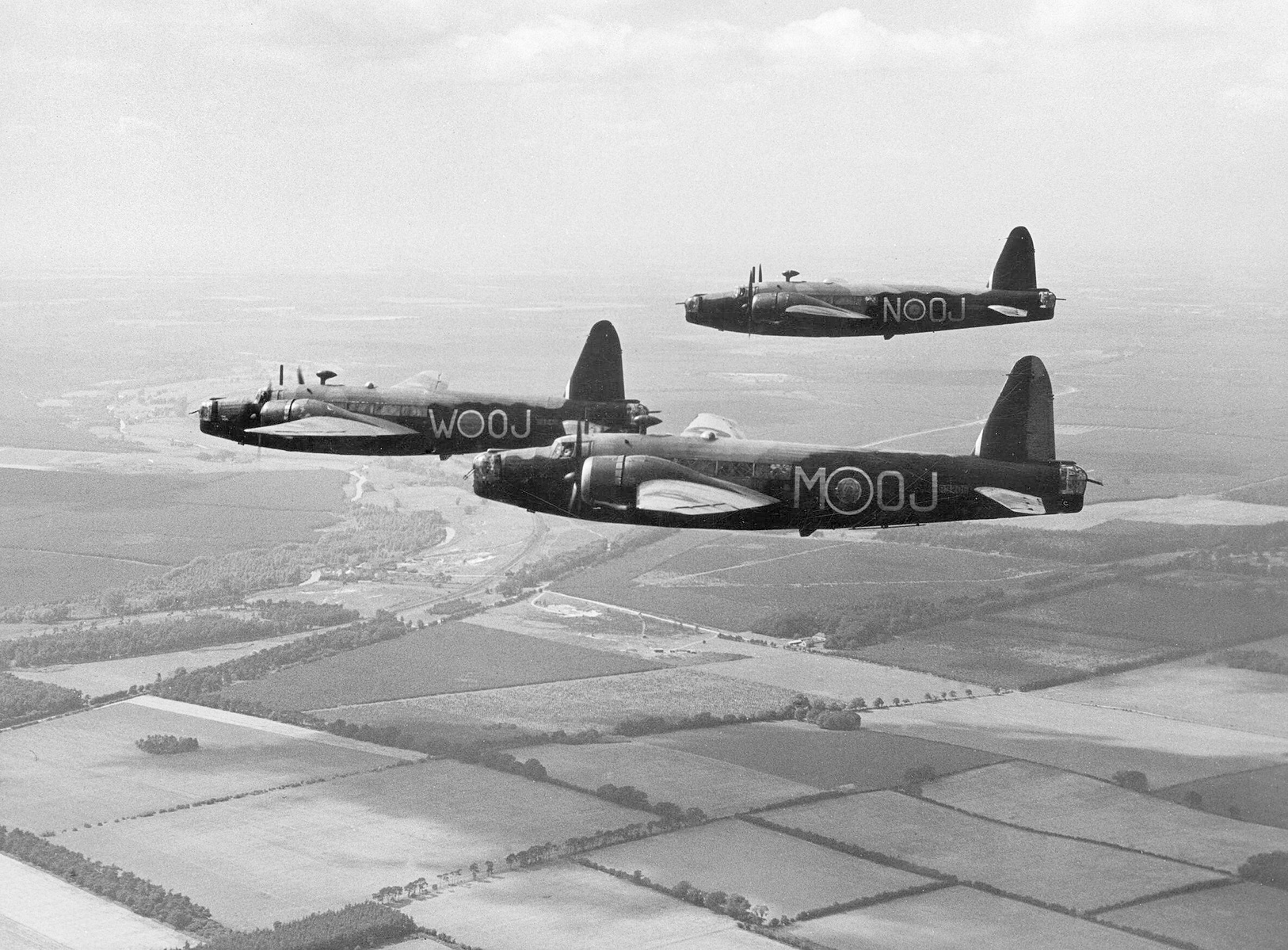

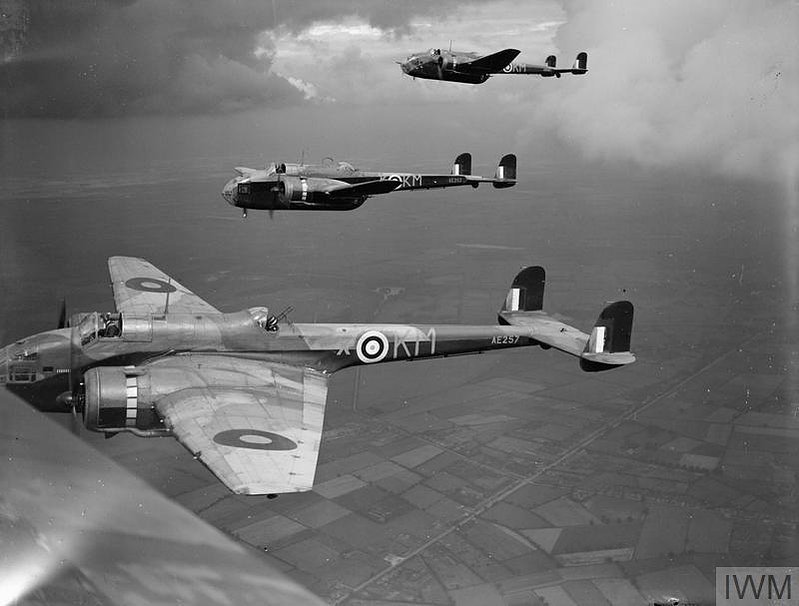

The initial British trio of bombers -Wellington, Whitley and Hampden- were lumpered by their small capacity of the bomb-bays and by the fact of being twin-engined planes, the more ton of bombs loaded means less fuel capacity. Berlin was at 950 kilometres (590 miles) from London in the very extreme range of RAF ‘twins’. For example, the max bomb-load of a Vickers Wellington was 4,500 lb (2,041 kg) of bombs, but this figure was reduced to only the half when the type attacked Berlin to be able to reach it.

The size of bomb-bays in RAF aircraft and the perceived chance of a hit were both real considerations in this early period. During 1940, use of the smaller ordinance (over 2,000 20-lb F; over 26,000 40-lb GP; nearly 62,000 250-lb GP) far outstripped that of the 500-lb GP (just over 20,000).

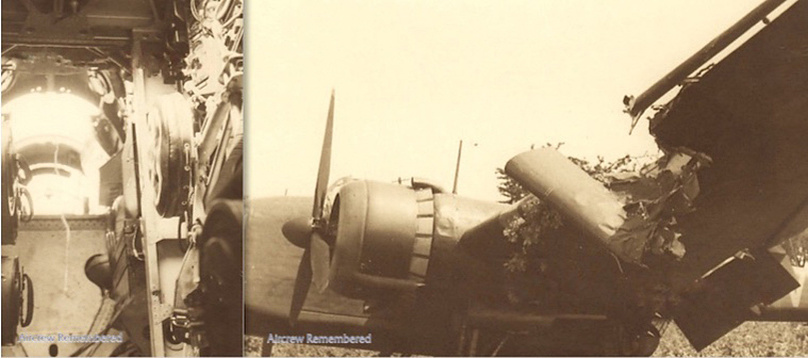

[Armourers fit fuzes to 250-lb GP bombs on their trolleys, prior to loading into Handley Page Hampden Mark I, P1333 EA-F, of No 49 Squadron RAF at Scampton, Lincolnshire. P1333 never
reached Berlin, being destroyed returning from a raid on Merseburg, Germany on 17 August 1940].

[Photo by Daventry, Bertrand John Henry (Flight Lieutenant). Imperial War Museums © IWM (CH 254).]

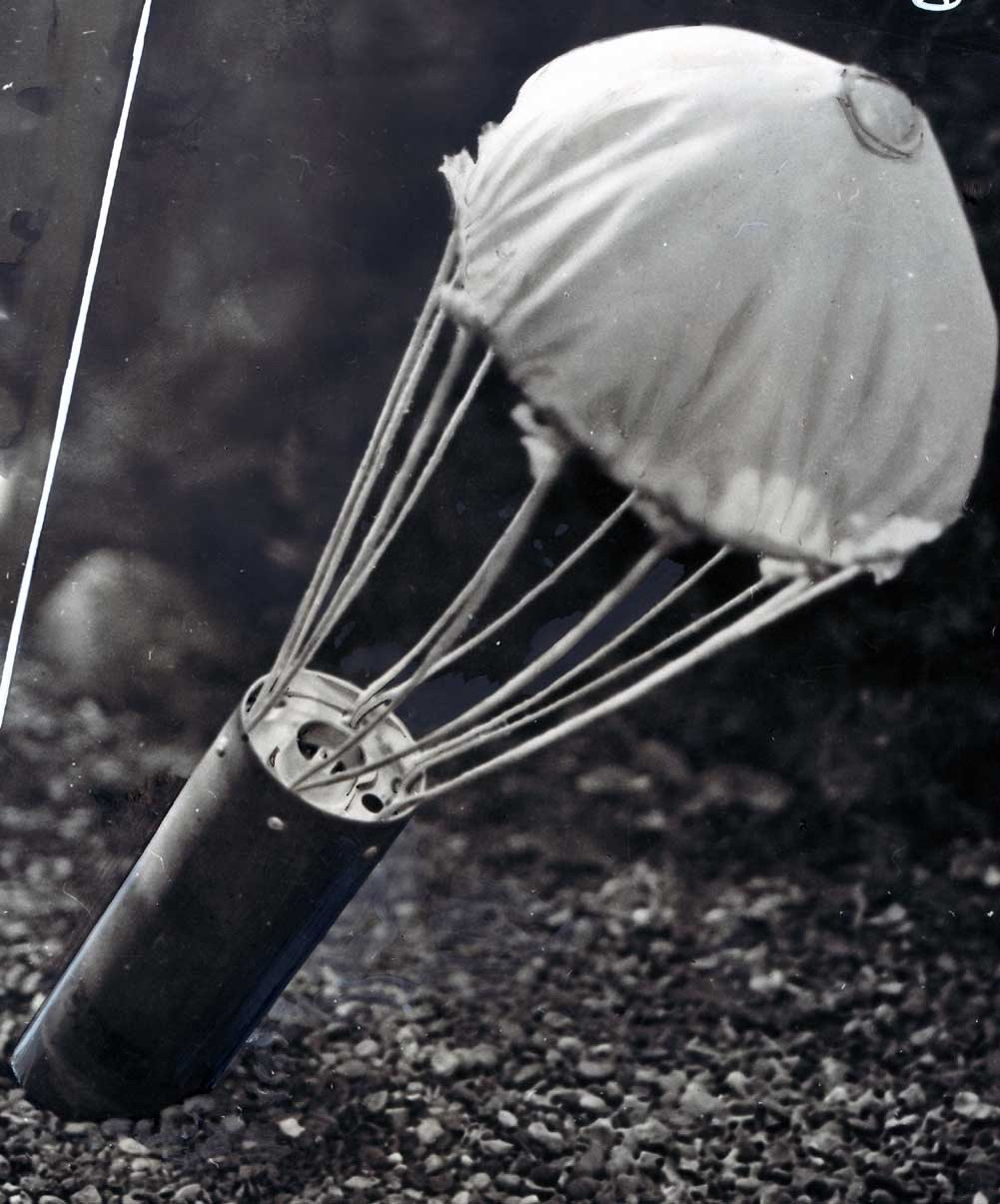

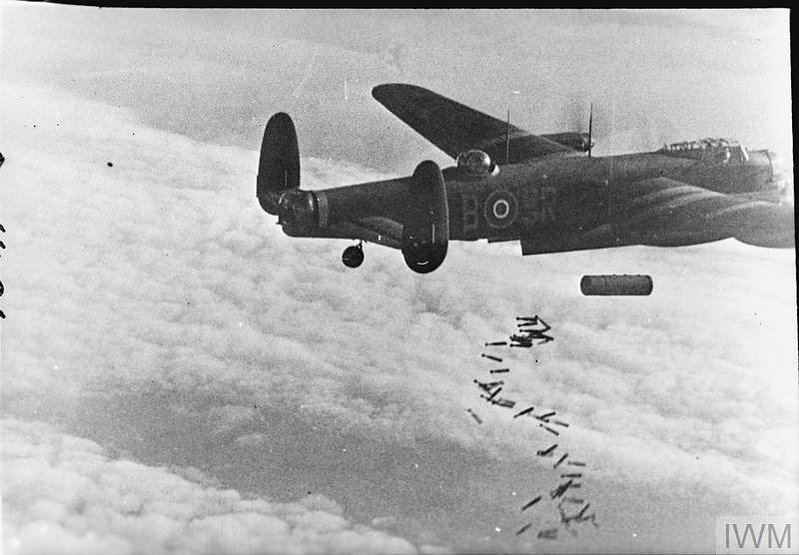

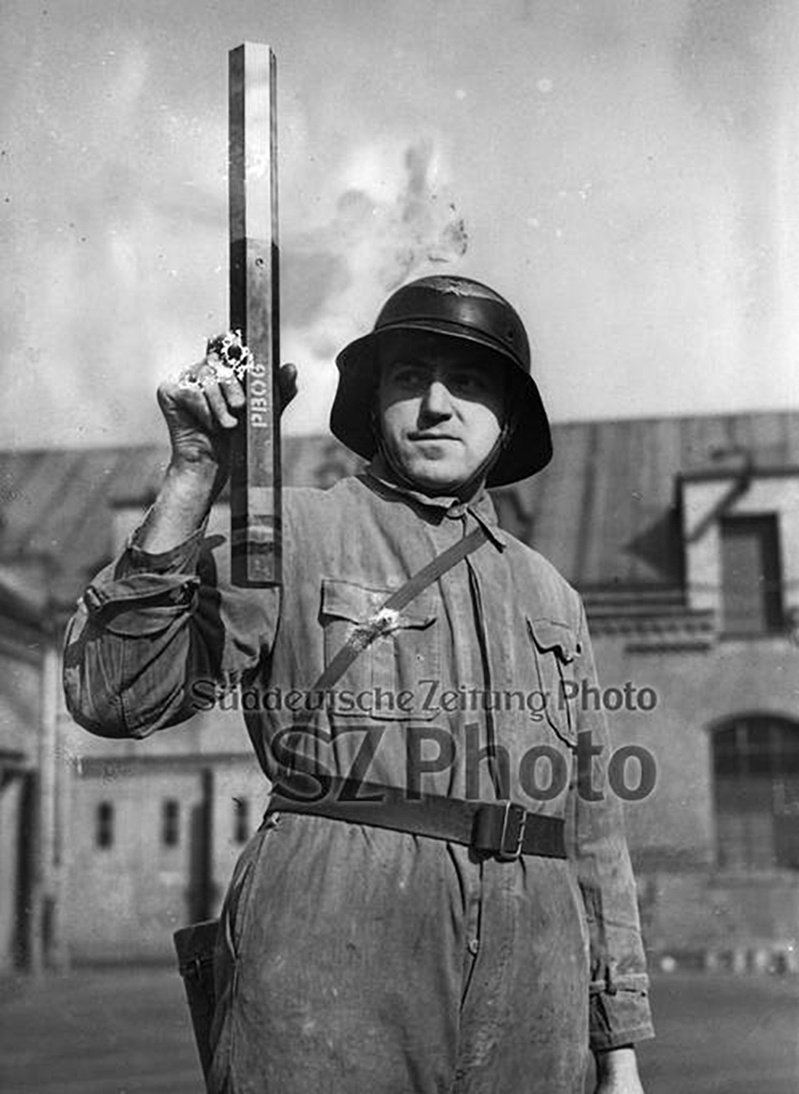

At the beginning of the war, HE (high explosive) bombs were considered the best weapon to use, with incendiaries employed in small numbers as a harassment measure; but the change in the bombing tactics from industrial targets to civilian and ‘area’ targets led the way to a mixed load comprising a much higher ratio of incendiary bomb to HE during the final years of the conflict.

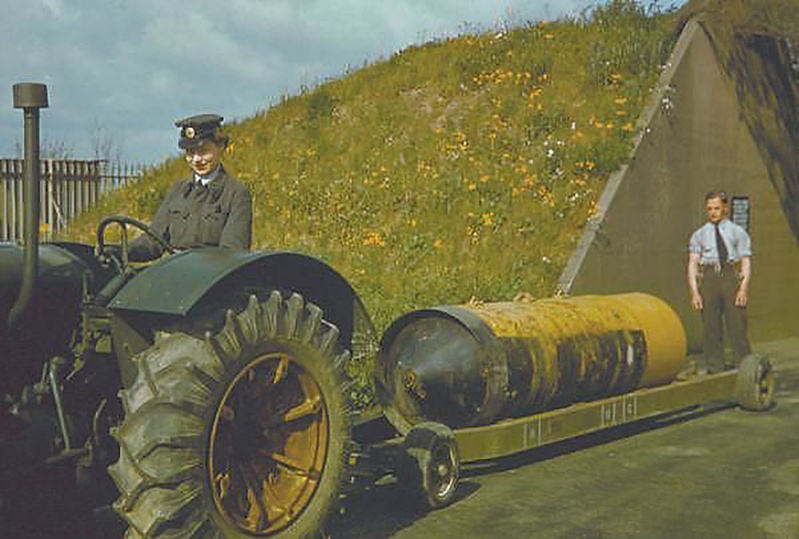

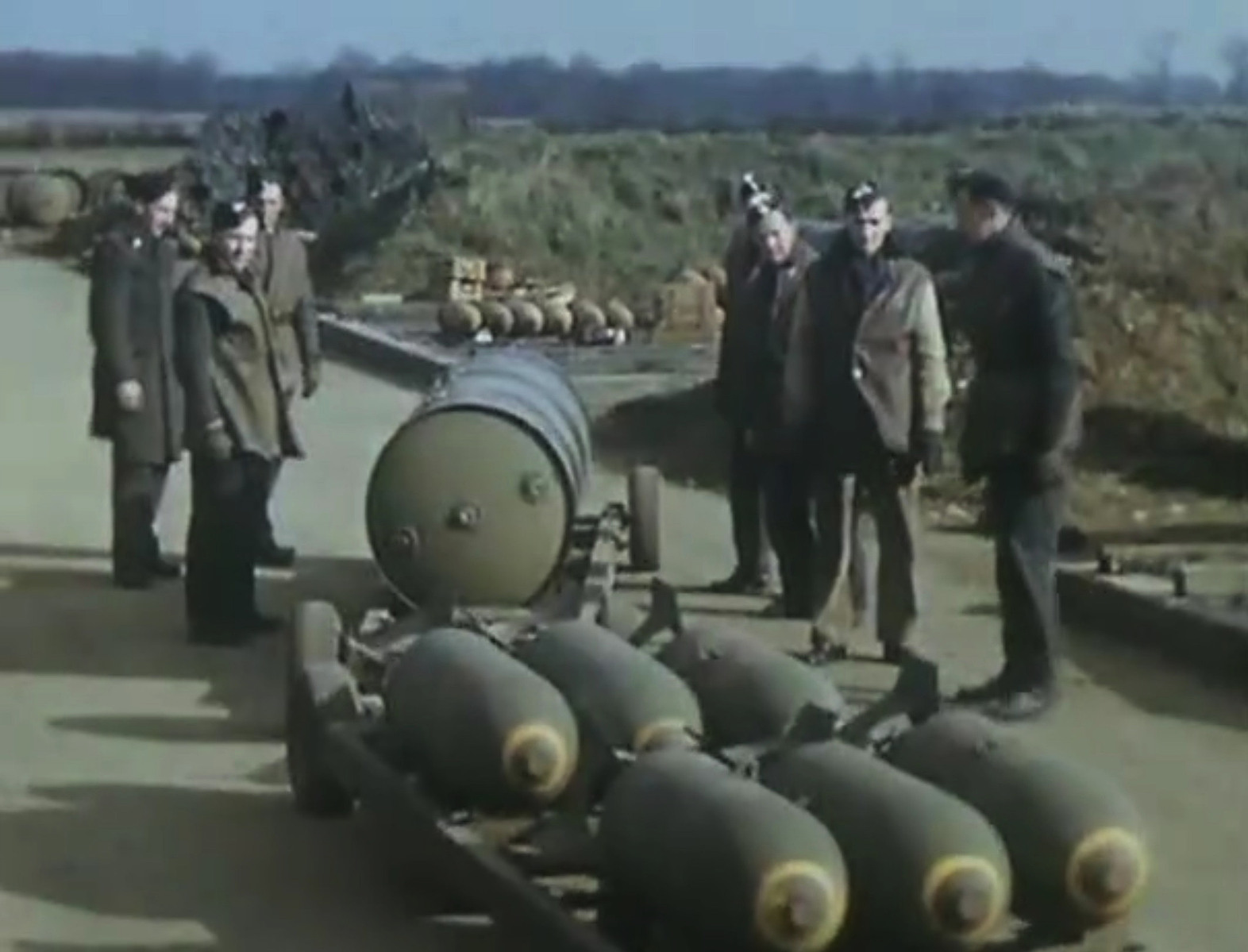

[WAAF (Women’s Auxiliary Air Force) driving a Fordson tractor pulling a train of full GP-bomb trolleys at RAF Mildenhall.]

[Photo by Charles Brown. RAF Museum D 707906.]

In those early days of the conflict, RAF bombs were painted in a light tan colour, later orange yellow and finally dark green.

The 250-lb and 500-lb GP bombs were still extensively used in 1941, until the more capable high explosive bombs were developed and brought into use. All these bombs became available in quantities too large for the existing bomber force in use; the RAF had the bombs but not enough bombers to use them against the Reich. For example, in October 1941 there were unused stocks of 121,000 tons of bombs at Britain depots.

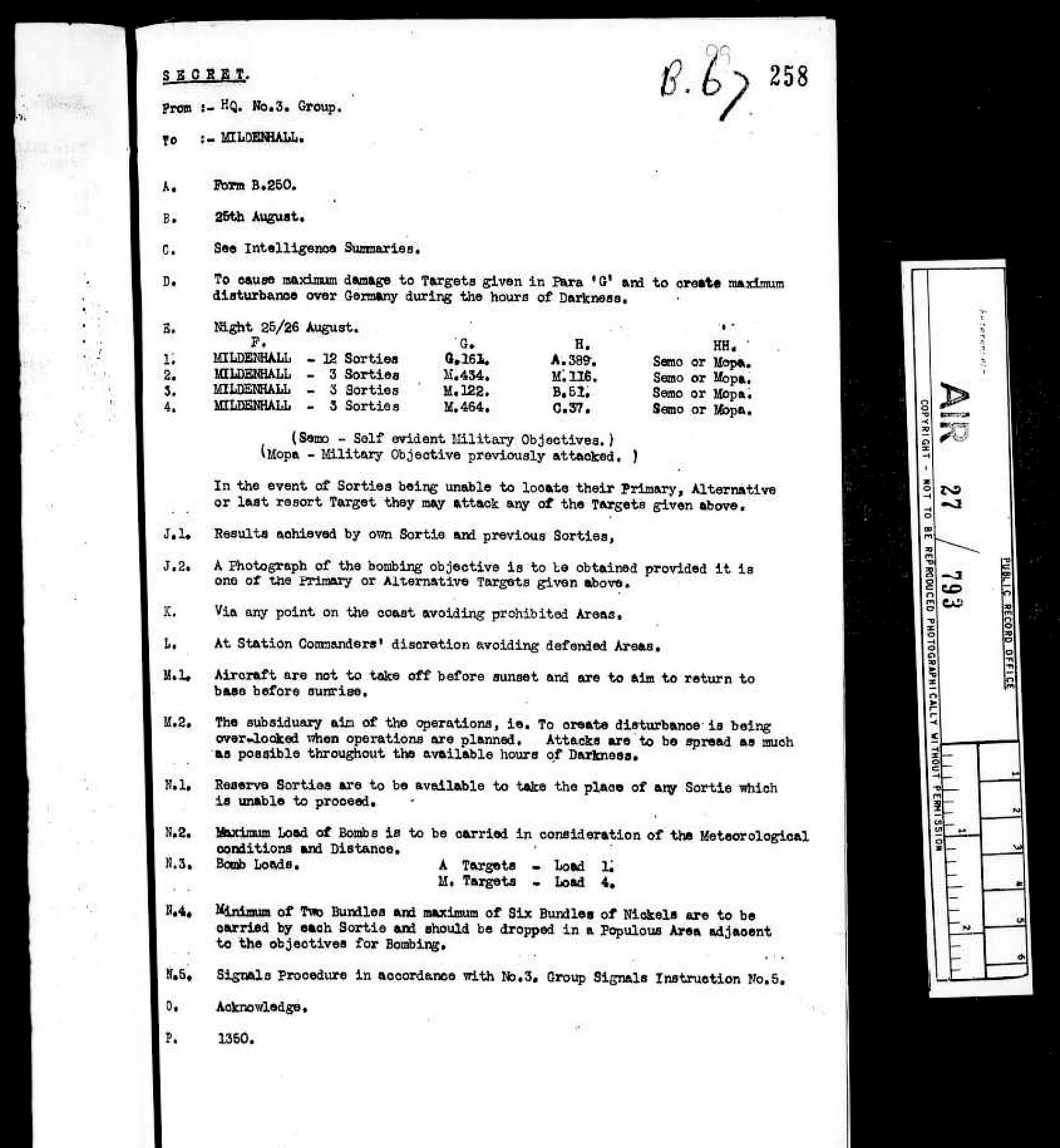

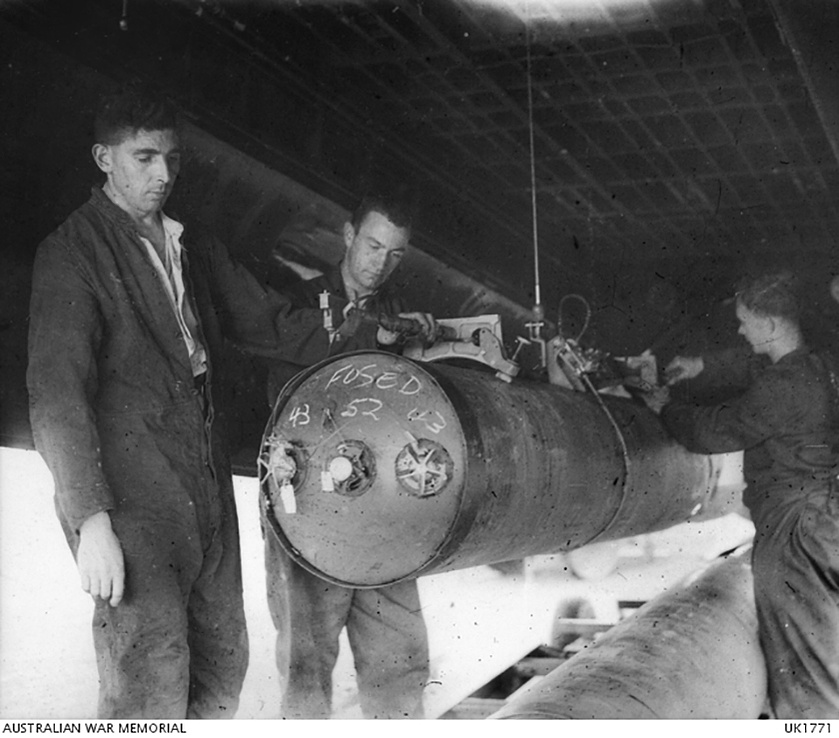

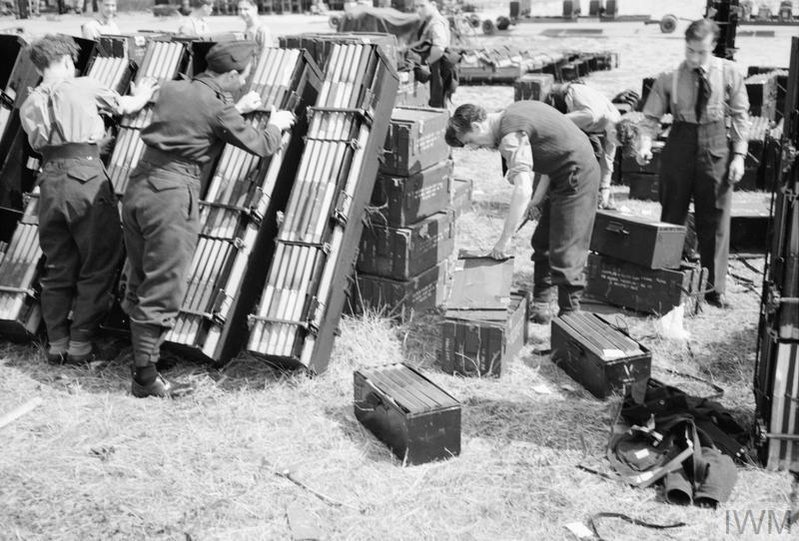

[Armourers wait for the conclusion of an engine test on Short Stirling Mark I, OJ-N, of No 149 Squadron RAF, parked at the end of the south-east runway at Mildenhall, Suffolk, before loading her with 250-lb GP bombs for a night raid on Essen, Germany. Each bomb has been fitted with a shackle to enable it to be winched into position in the Stirling’s high bomb-bay.]

[Photo by Brock, F. J. (Flying Officer). © IWM (CH 5135).]

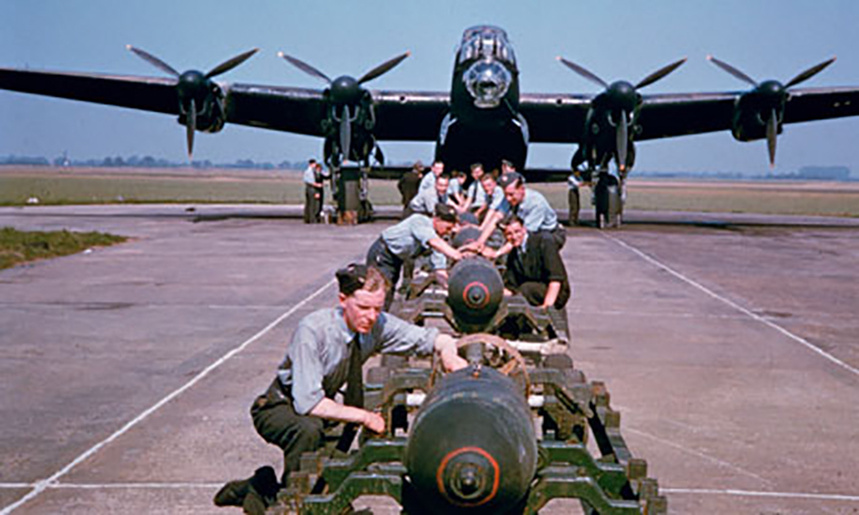

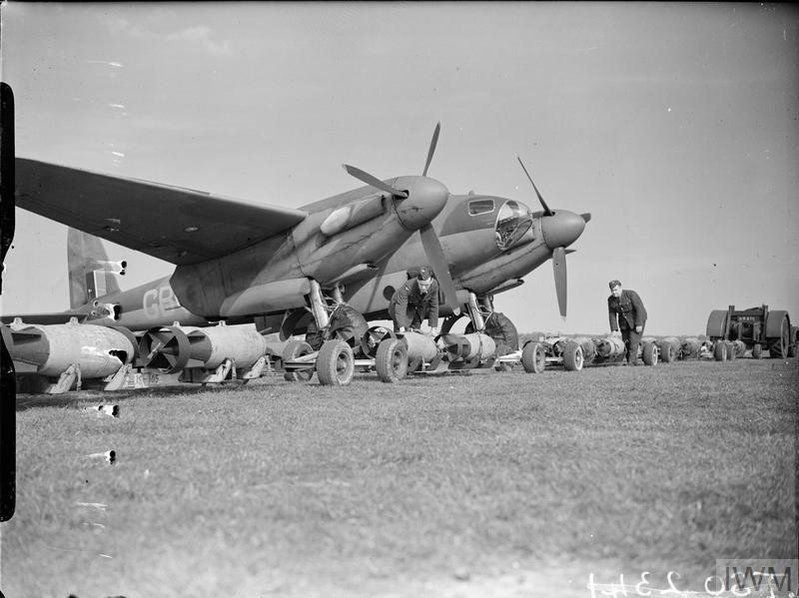

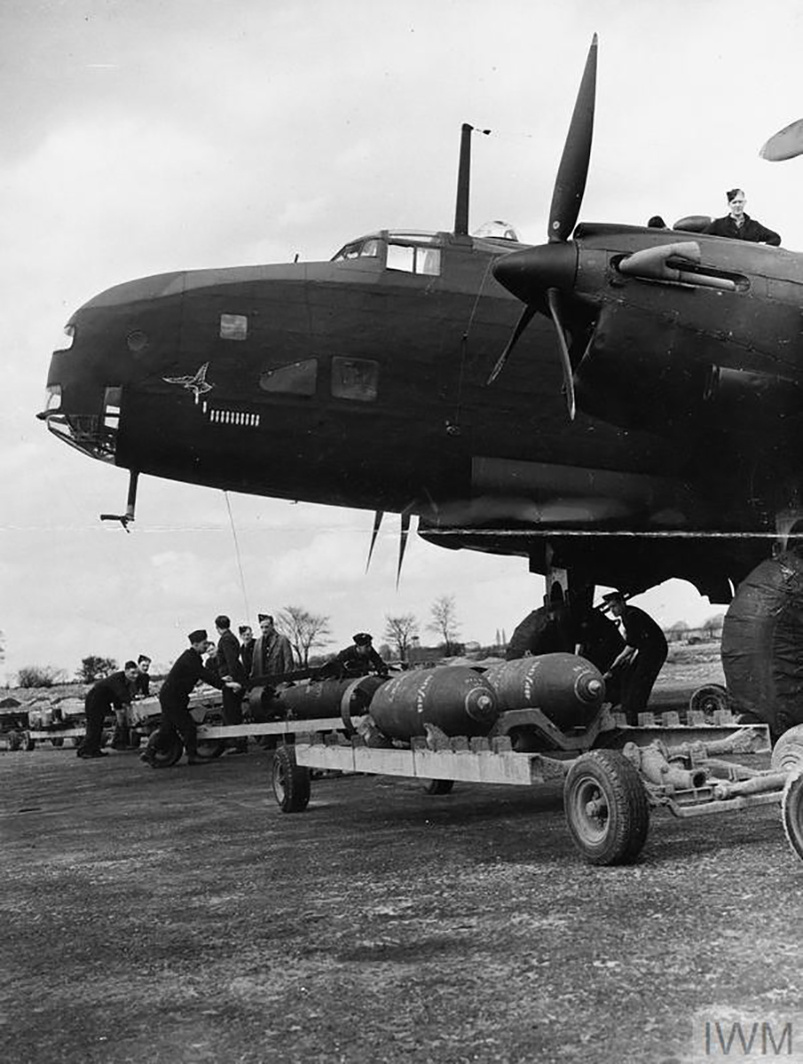

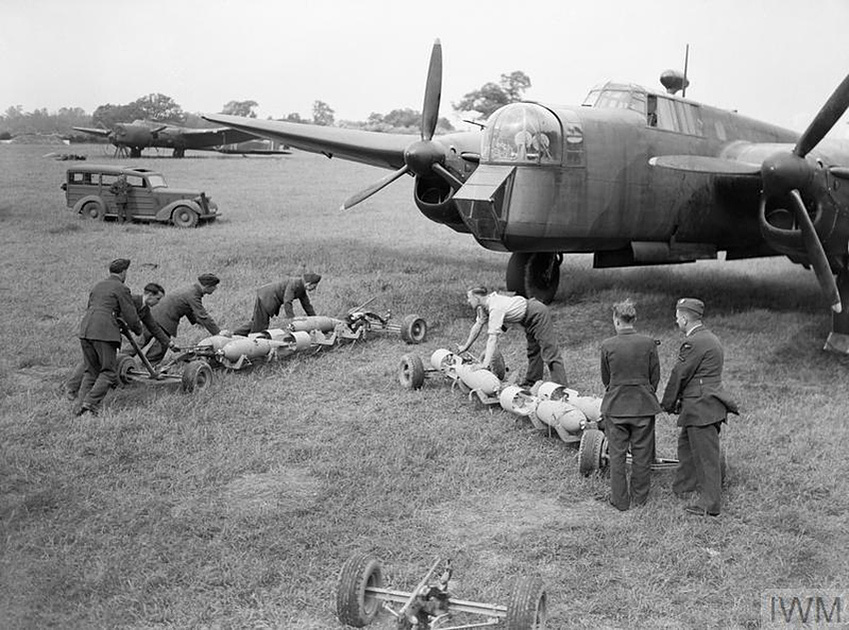

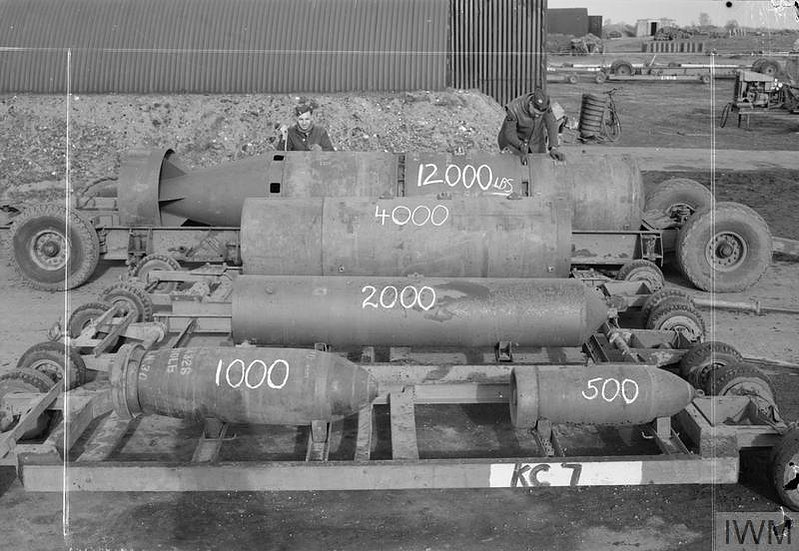

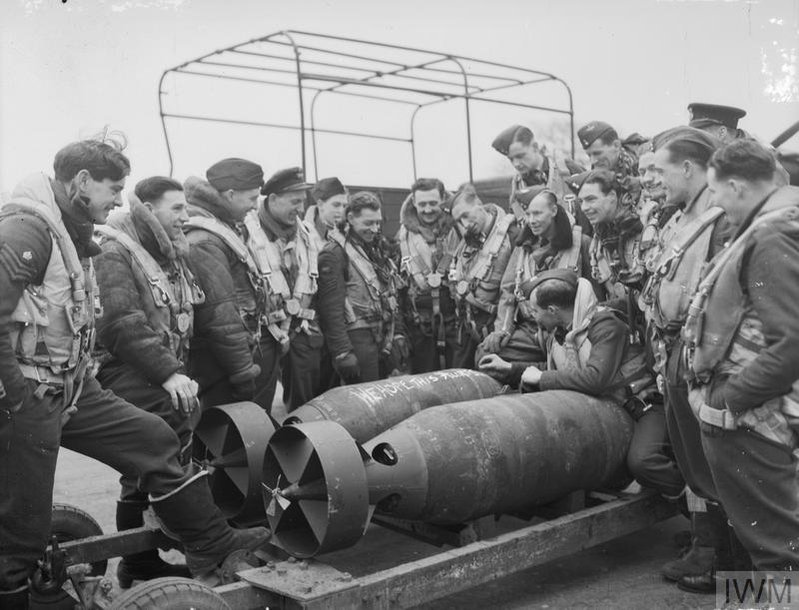

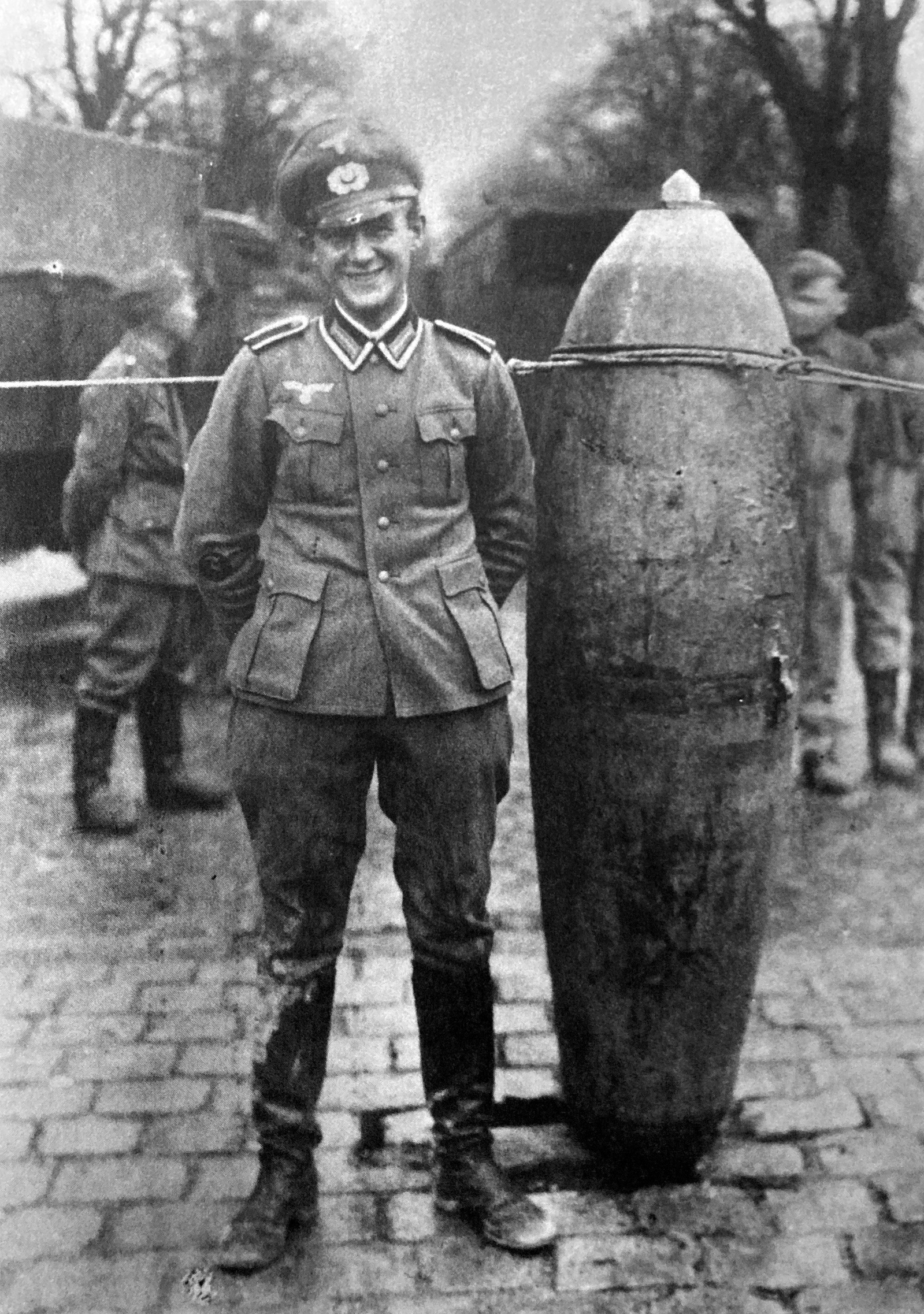

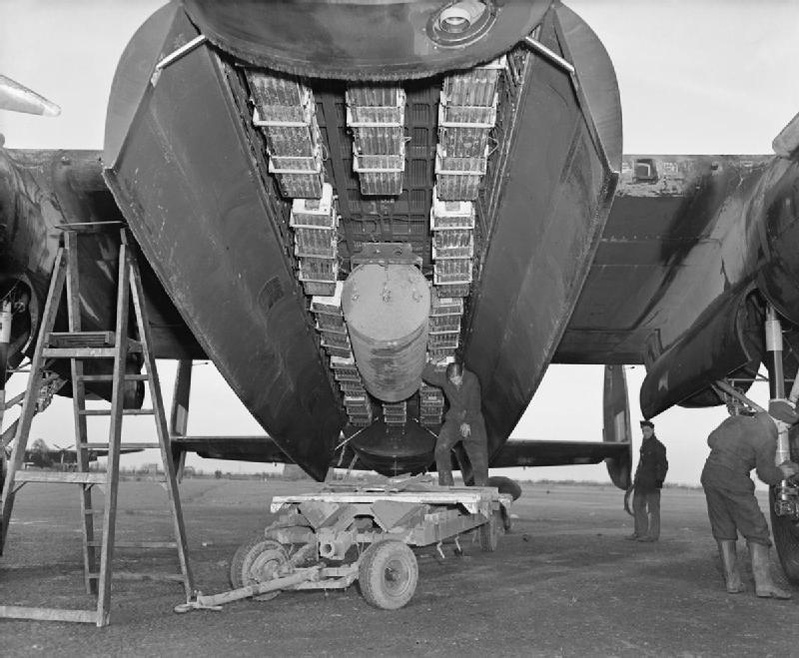

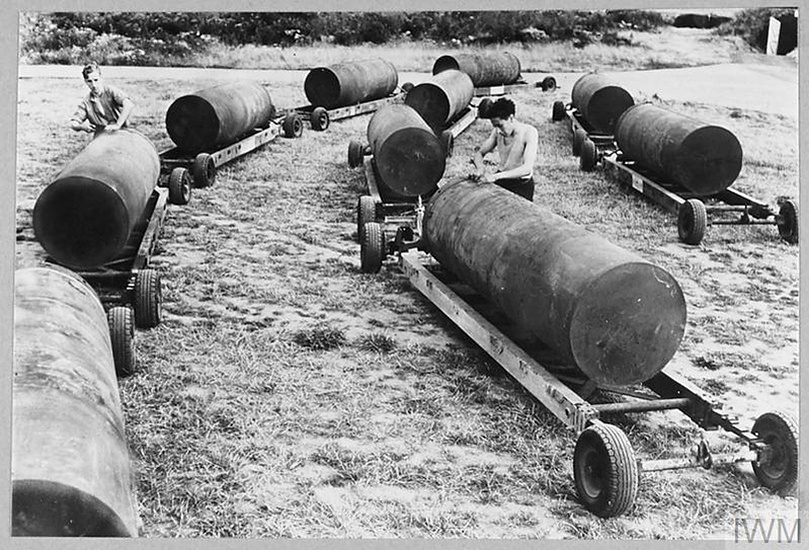

[Tail end of a bomb trailer: a rear view of an 1000-lb GP bomb en route for the carrying aircraft ready for a raid on Axis targets.]

[Photo: © IWM (CH 7205).]

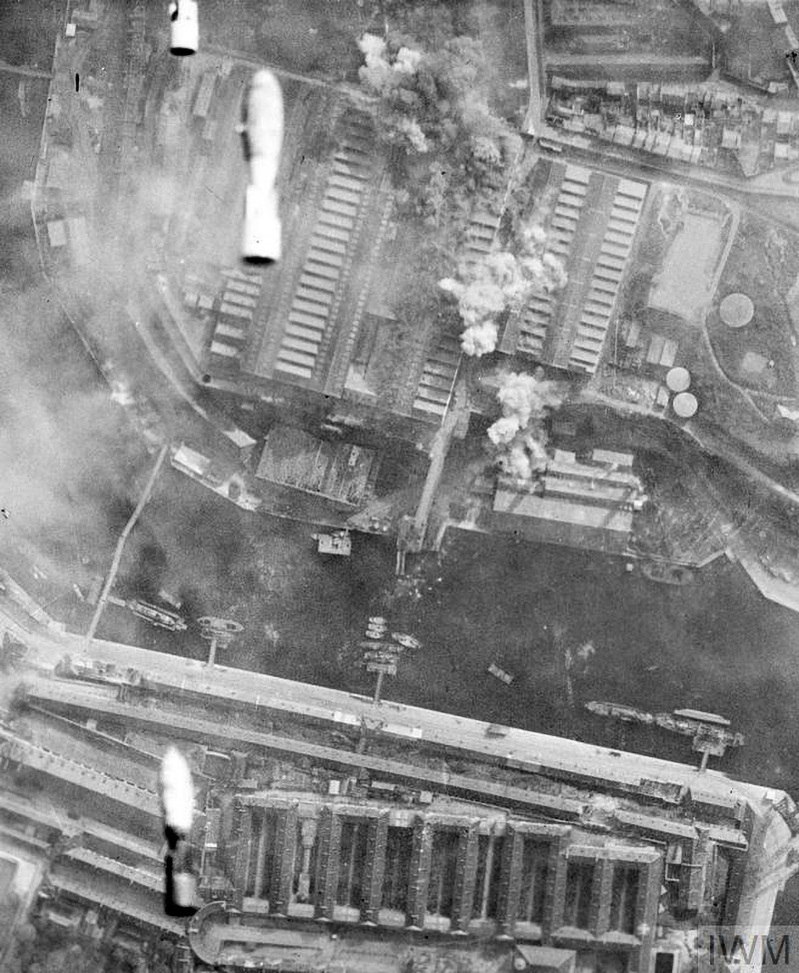

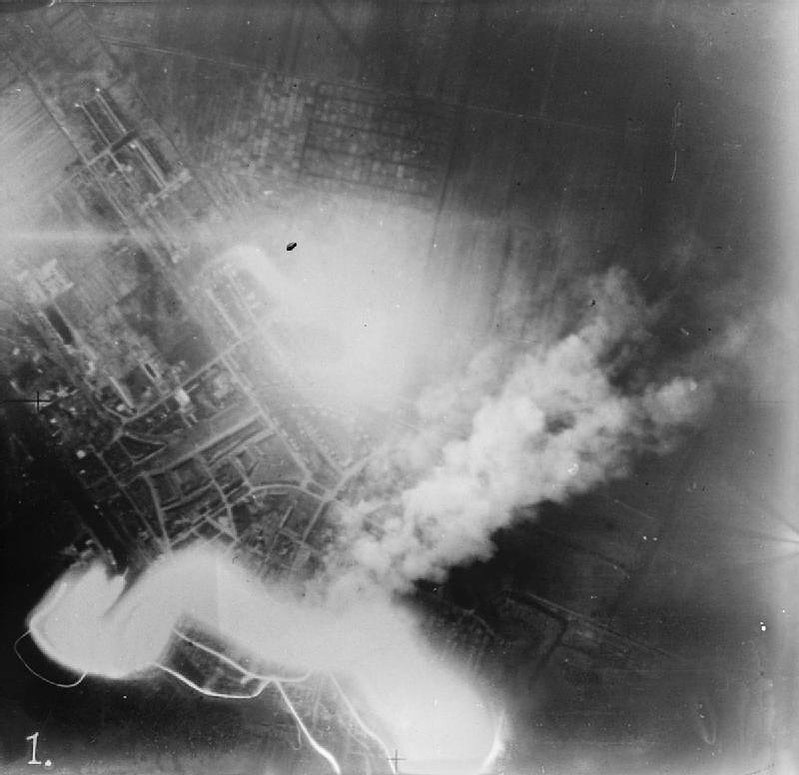

[Bomb bursts straddle the machine workshops in the naval arsenal as another stick of 500-lb GP-bombs falls toward the target area during a daylight raid on shipping and installations by Venturas of No 21 Squadron RAF on Brest, France.]

[Photo: © IWM C 3491.]

This table shows, by type, the number of General Purpose bombs dropped by RAF Bomber Command during World War 2. Source: Burls, Nina. RAF bombs and bombing. ROYAL AIR FORCE HISTORICAL SOCIETY. Journal 45. 2009.

Source: Burls, Nina. RAF bombs and bombing. ROYAL AIR FORCE HISTORICAL SOCIETY. Journal 45. 2009.

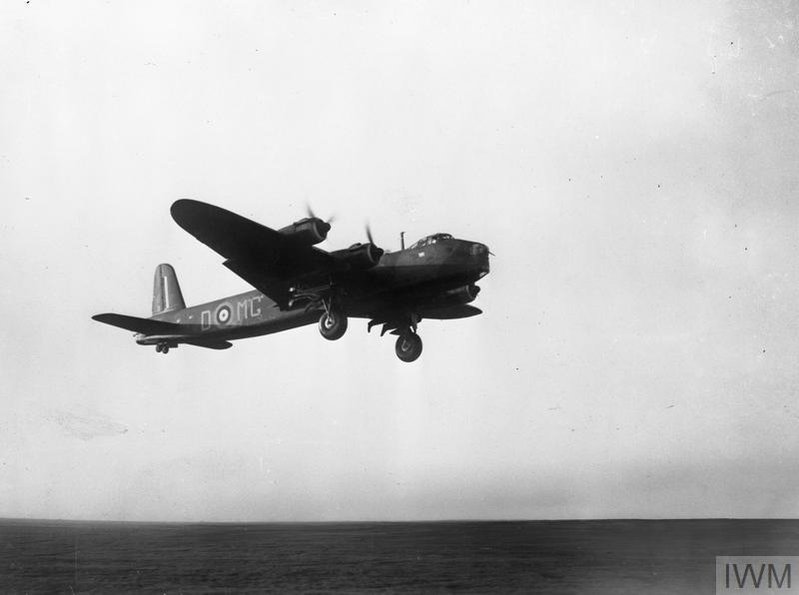

The GP bombs had a high detonation-failure rate (10-15%) and the introduction of the heavy four-engined bombers such as the big Short Stirling just augmented the ton of explosives dropped on the Third Reich, not the effectiveness of the raids.

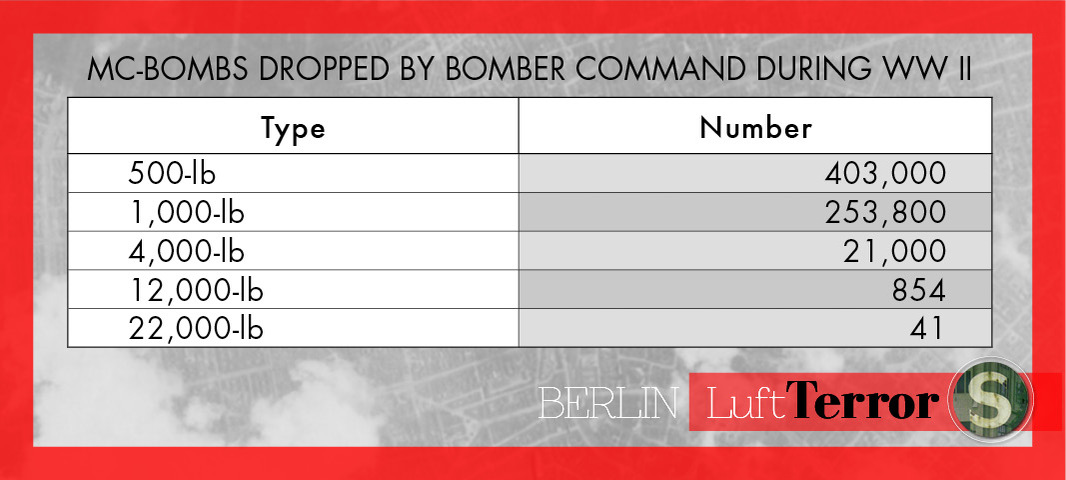

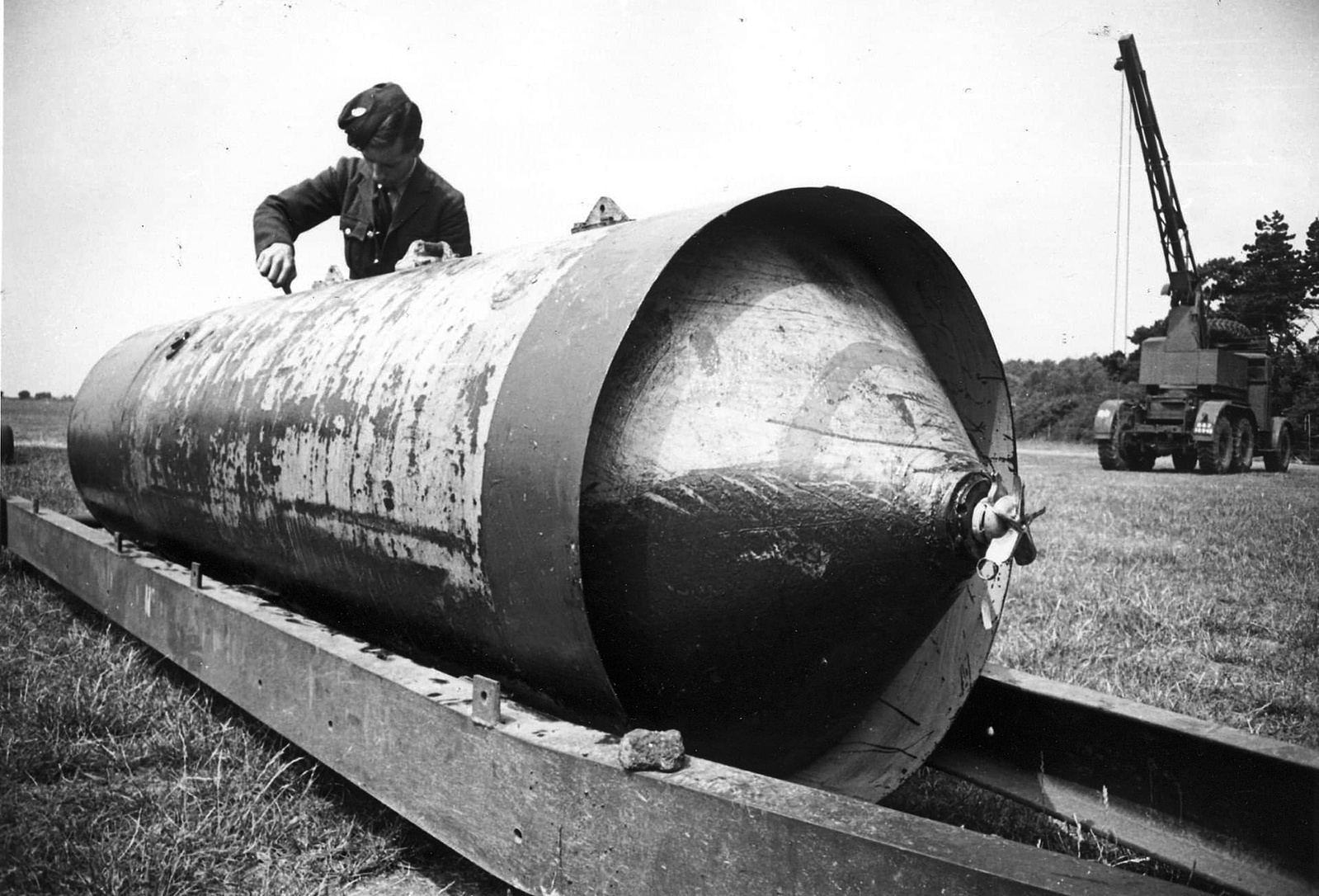

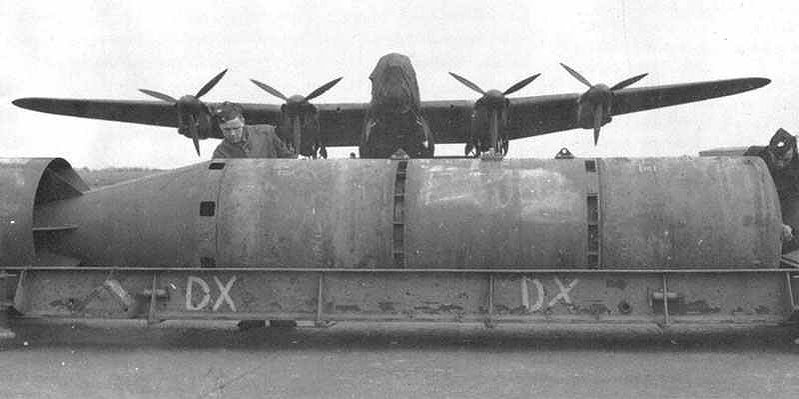

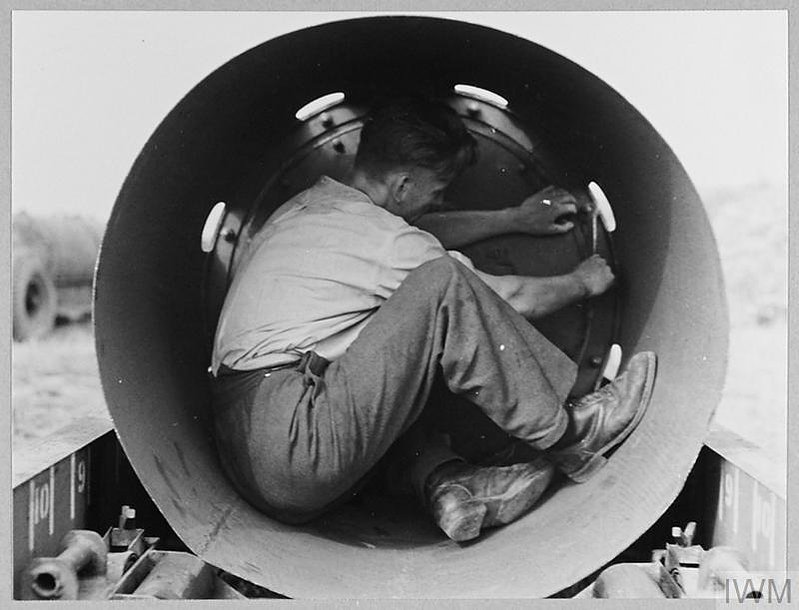

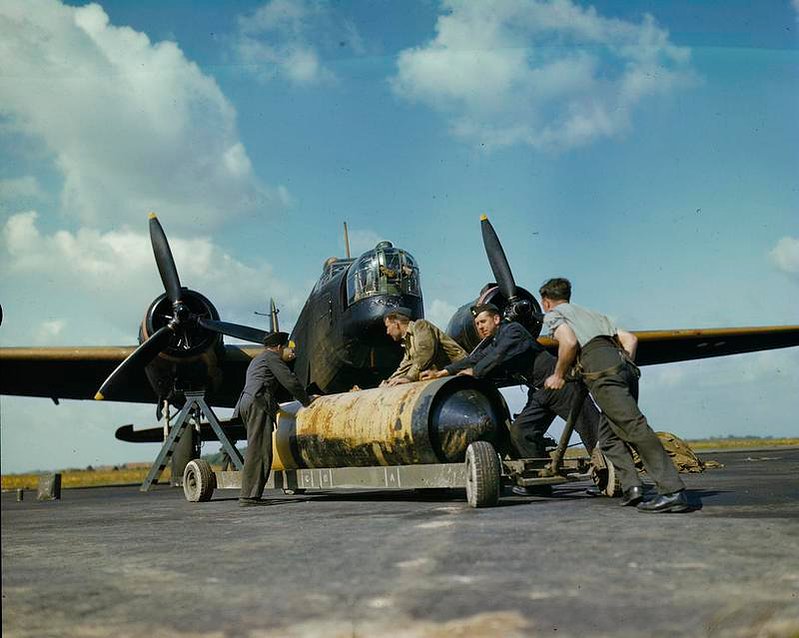

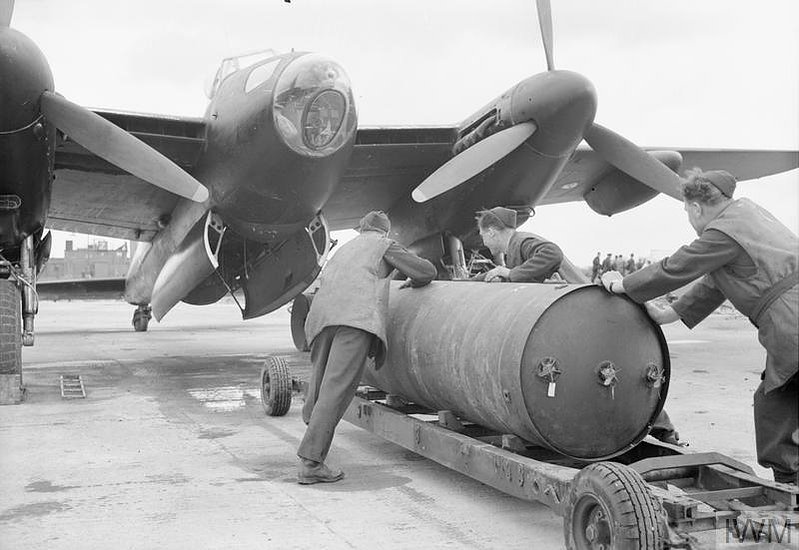

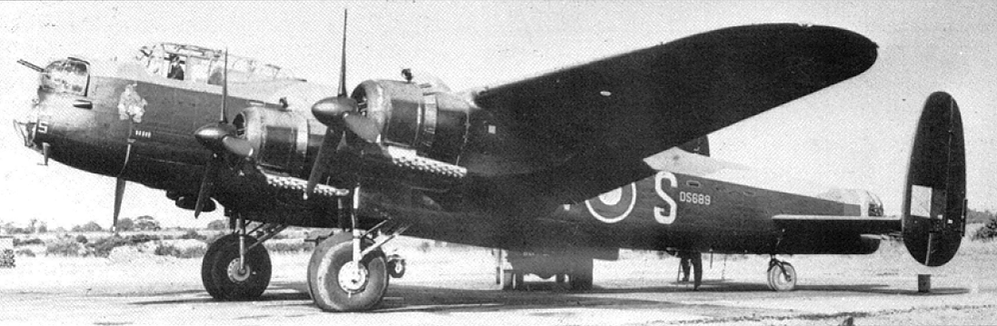

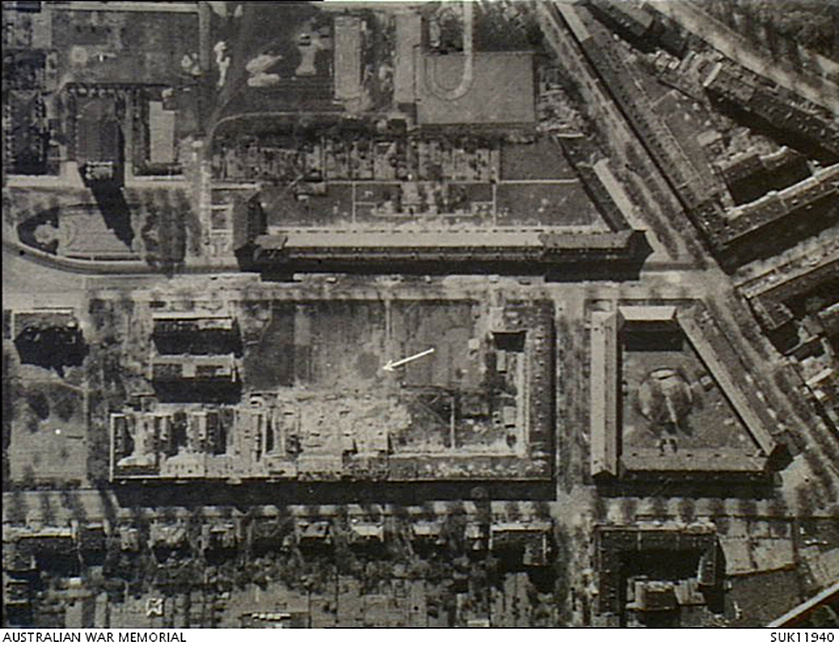

In conclusion, during 1940-41 RAF Bomber Command was inadequate to destroy such a large city like Berlin was and tried to grow the number of raids against the capital, all of which did little damage. This gonna led to two vital changes: the development of the more potent MC and HC bombs, and the introduction from mid 1941 of the new heavy four-engined bomber force.


_______________

Source:

  • Air ministry. RAF Armament Volume I: Bombs and Bombing Equipment. 1954.
  • Bowman, Martin W. (2016). Nachtjagd, Defenders of the Reich 1940-1943. Pen & Sword Aviation.
  • Bowman. Martin W. (2014). Voices in Flight: the heavy bomber offensive of WW2. Pen & Sword Aviation.
  • Bowman, Martin W. (2015). Voices in flight: RAF Night Operations. Pen & Sword Aviation.
  • Boyd, David. 1000 lb Medium Capacity Bomb. <http://www.wwiiequipment.com>
  • Falconer, John. (1998). Bomber Command Handbook. The History Press.
  • Overy, Richard. (2013). The Bombing War: Europe, 1939-1945. Allen Lane.


_______________

Previous post >



The Swiss House

In the corner where Unter den Linden meets Friedrichstraße, there is a house with more than 85 years of history in Berlin. Today, this building stands as one of the original places of the city and a survivor of the Allied bombing campaign and the Luftangriffe of the Second World War.

[Unter den Linden Nr 22 Ecke Friedrichstraße nr 155-156 during the days of the Third Reich. At left corner can be seen the “Haus der Schweiz”. At right, the famous Viktoria Hotel and Café, 1939-40. Note Friedrichstr. Bhf in the background.]

[Photo by Sobotta. interaktiv.morgenpost.de historisches-berlin-in-farbe.]

The house was built during 1934-1936 by Swiss architect Ernst Meier-Appenzell with a clean façade, an arcade and rectangular windows, in a monumental building style. The client was the “Haus der Schweiz GmbH”, to which the Swiss bank Leu, the Swiss bank and the Swiss Federal Railways had joined forces. Like many Swiss companies, they had considerable sums of German Reichsmark.

Since these were classified by the Nazis as “Sperrmark”, however, a transfer of the money into Switzerland would have been associated with considerable price losses. Instead, the three companies bought a plot of land on the corner of Friedrichstraße/ Unter den Linden and had a six-storey business and office building built there - “at the first business location of the Reich capital”. The property was intended as a financial investment, but served at the same time also quite representative purposes.

The building had the lettering Haus der Schweiz, prominently displayed on both sides of the façade, as well as a Wilhelm Tell figure. The bronze sculpture, however, is not William Tell, but his son Walther. Supposedly a trick of the builder: because the Nazis did not want to tolerate a representation of the freedom fighter and Swiss national hero himself, they trained just now his son with a crossbow and an apple. On the other hand, the Nazis could not say anything - and the Swiss national pride was still respected. In the spring of 1936, the builders themselves became the first tenants to enter the ”Haus der Schweiz”.

[Dark times at Unter den Linden: Nazi and Italian banners along the Berlin avenue during state the visit of Italian Fascist leader Mussolini to Berlin in September 1937. The red buses belonged to the Käse’s Rundfahrten Rieseburo.]

Photo: Gettyimages.

[A view of the Unter den Linden building in 1939 just before the Second World War.]

Photo by Frankl A: Bundesarchiv (B145 Bild-P015390).

[View northwards in to Friedrichstraße. Right: Café Viktoria, left: Haus der Schweiz, circa 1940. Above the arcs can be read in capital lettering ‘Schweizer Verkehrsbüro’ (“Swiss Tourist Office”).]

[Photo: akg-images.]

In the shops on the ground floor, the Swiss Tourist Office opened a branch (Schweizer Verkehrsbüro), where citizens could book train journeys to Switzerland.

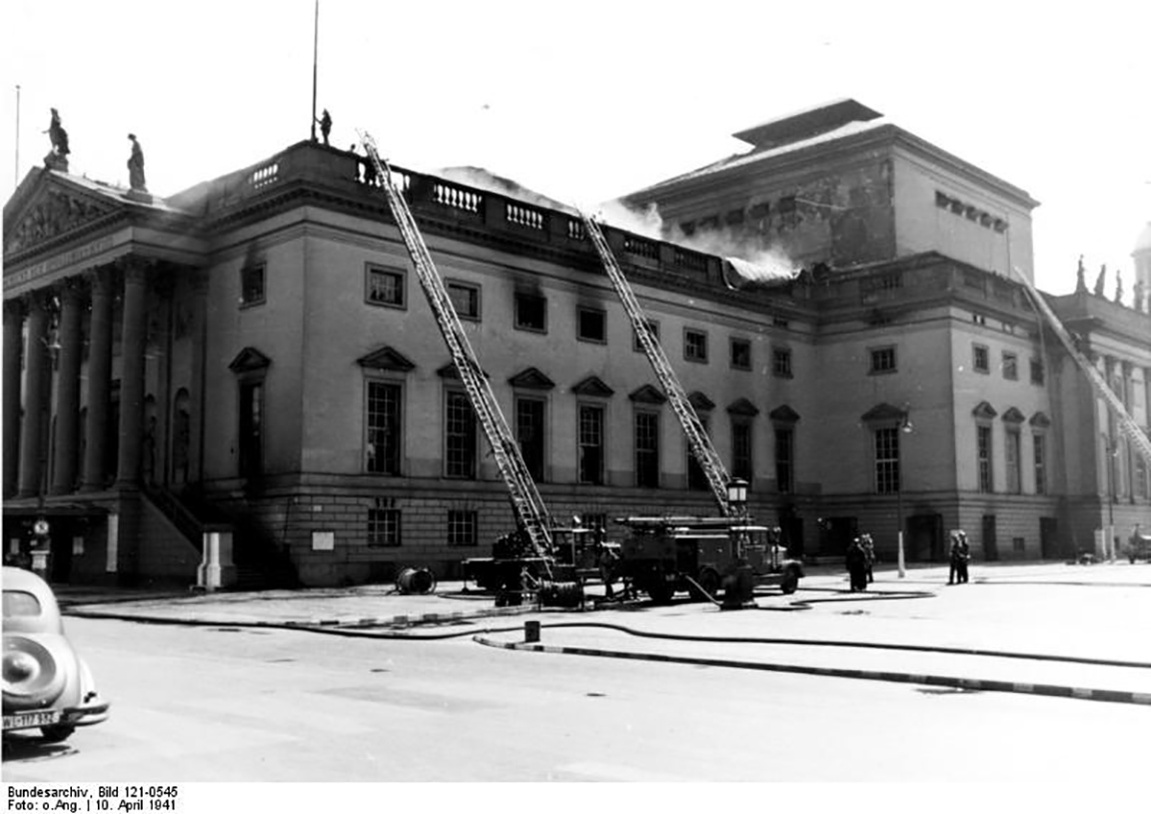

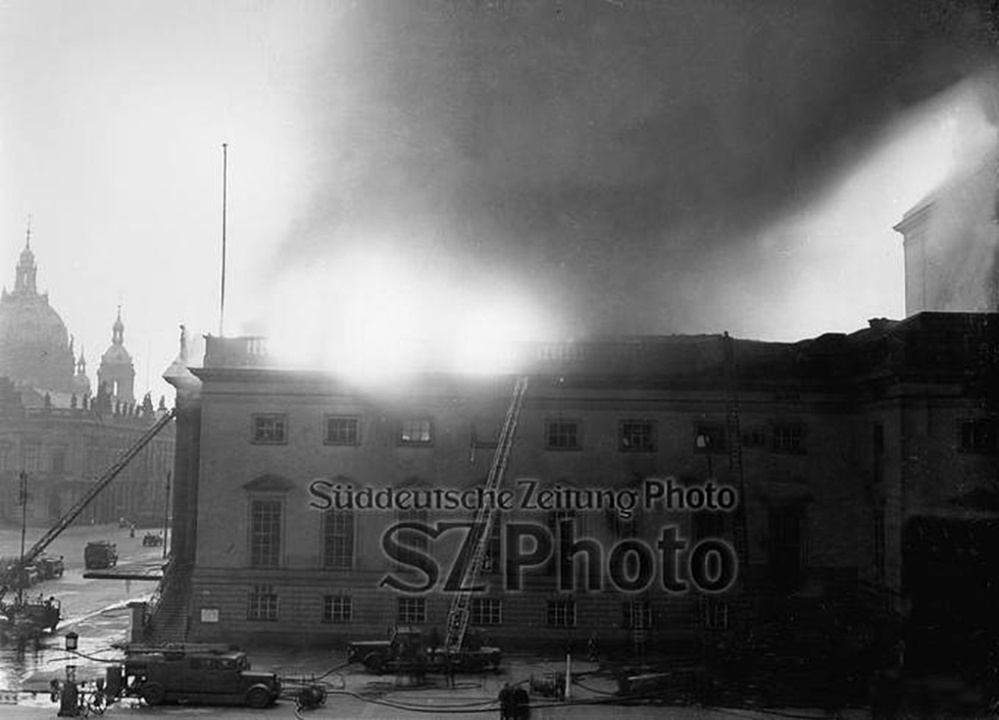

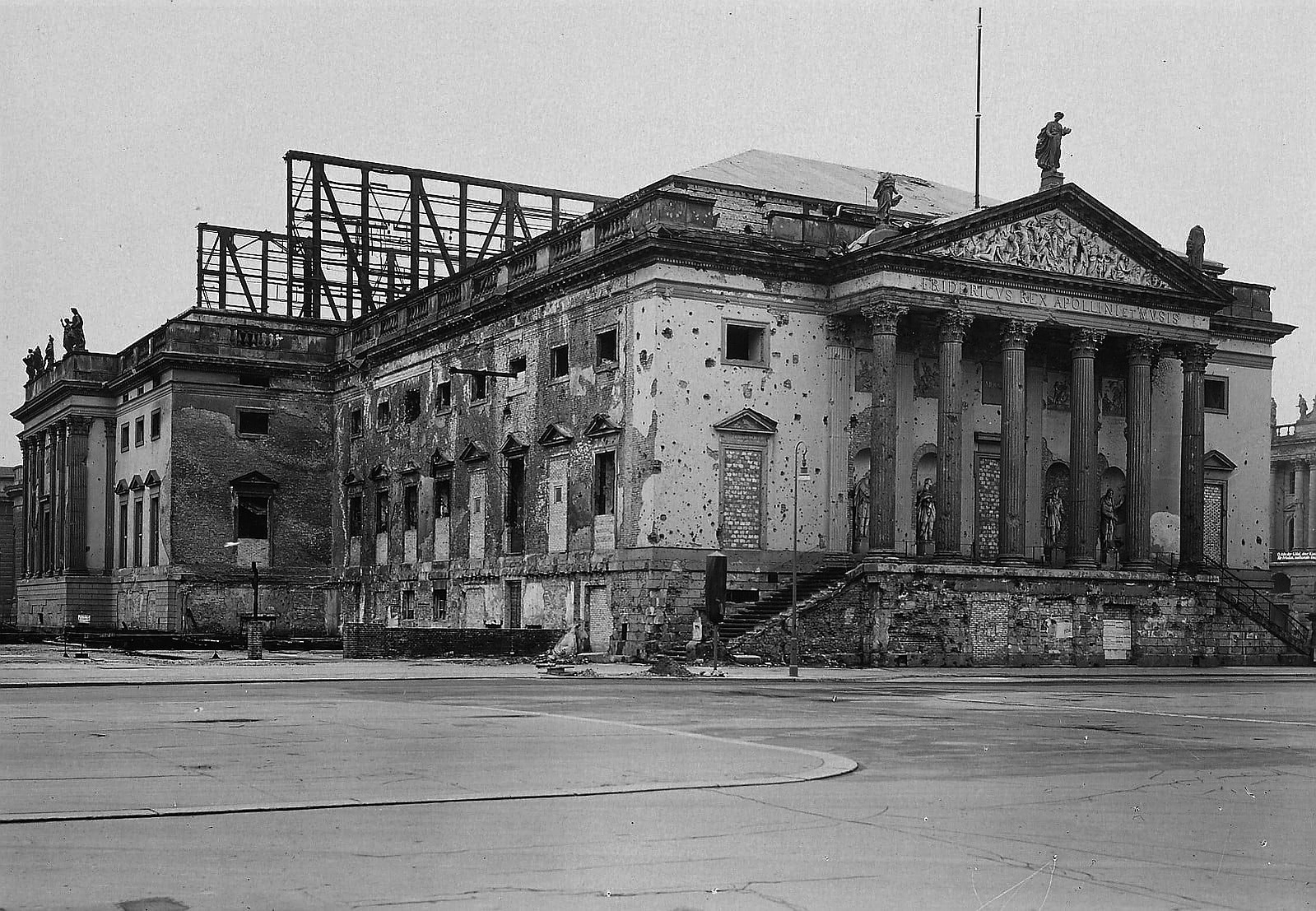

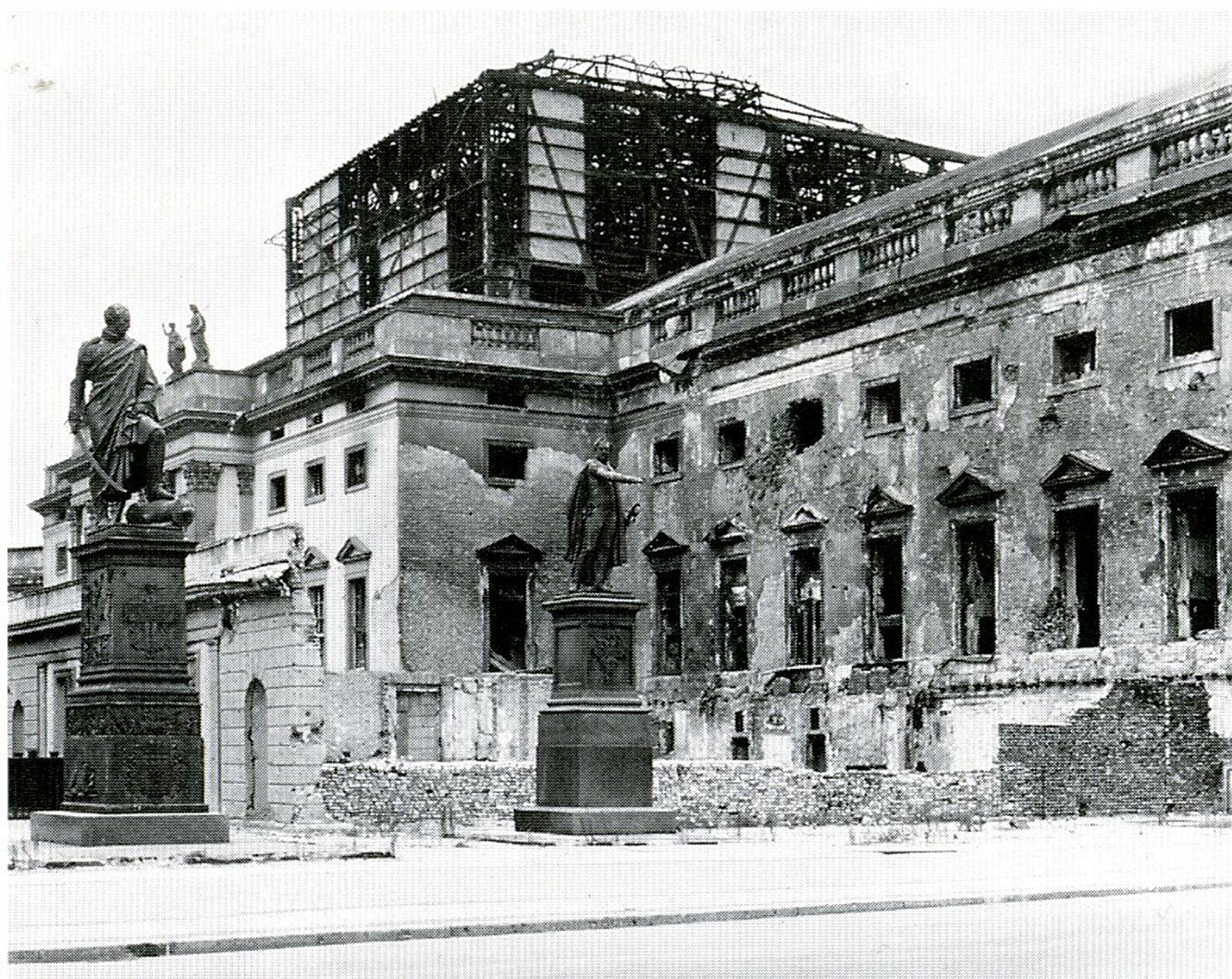

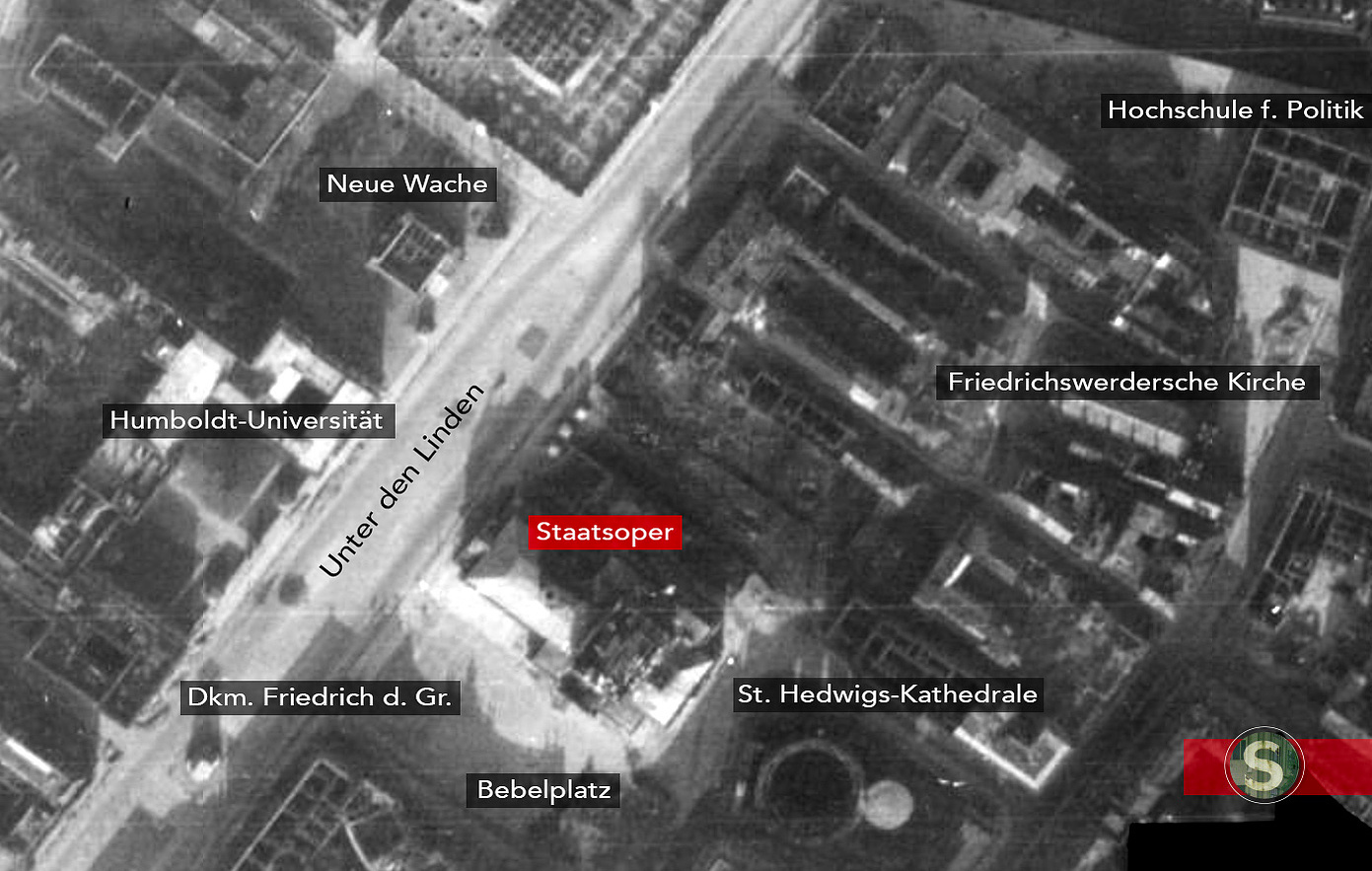

During the war, this zone was severely damaged by Allied bombings, the building was hit on the evening of 9/10 April 1941 during the raid made by RAF British bombers which affected many areas in Mitte including the famous Staatsoper den Linden. Some bombs hit this area on 3 February 1945 during the massive US air strike on Berlin, with serious damage to adjacent buildings including the famous Hotel Viktoria next to the Swiss House.

Years later, the Soviet offensive in the city inflicted more damage, but thanks to the modern construction method, this building survived the bombing of Berlin at the end of war as the only one in the area relatively intact.

[The famous corner Unter den Linden Ecke Friedrichstraße in a colour picture taken in 1939.]

Photo by Sobotta. Getty Images.]

Photo: Michael Sobotta/ Sutton Verlag.

[This image shows that same corner after the war’s end. The Viktoria-Café placed at the right corner was totally wiped out by bomb damage during the final two years of the conflict, especially on February 3rd 1945 attack. The Swiss building has survived the bombing of Berlin relatively intact.]

[Photo by Abraham Pisarek. Deutsche Fotothek.]

[Another view of Berliners working on the debris after the war in front of the Haus der Schweiz at Friedrichstraße/corner Unter den Linden. Notice that the Tell bronze sculpture has survived barely intact.]

Photo Berliner Verlag/ Alamy.

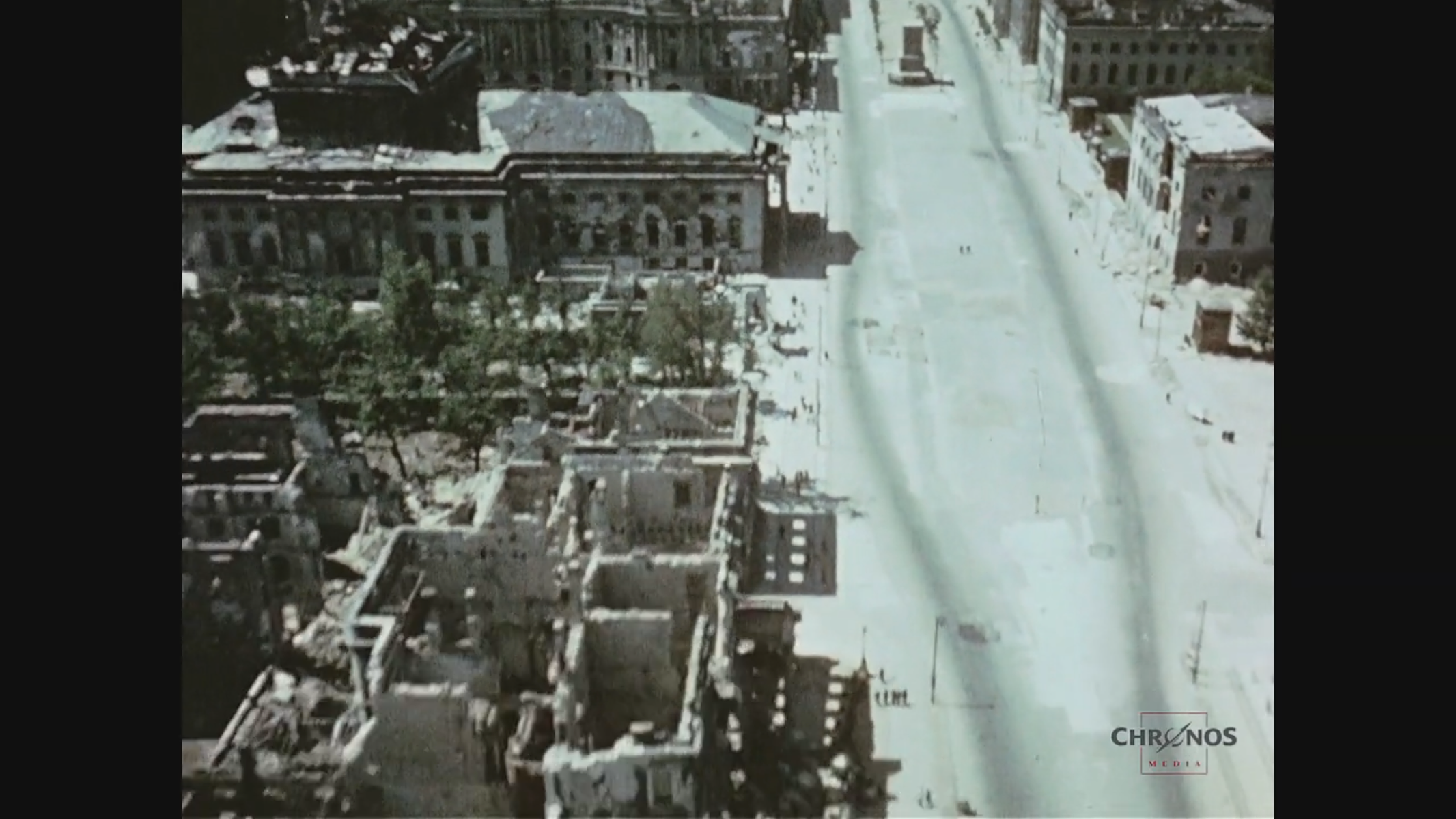

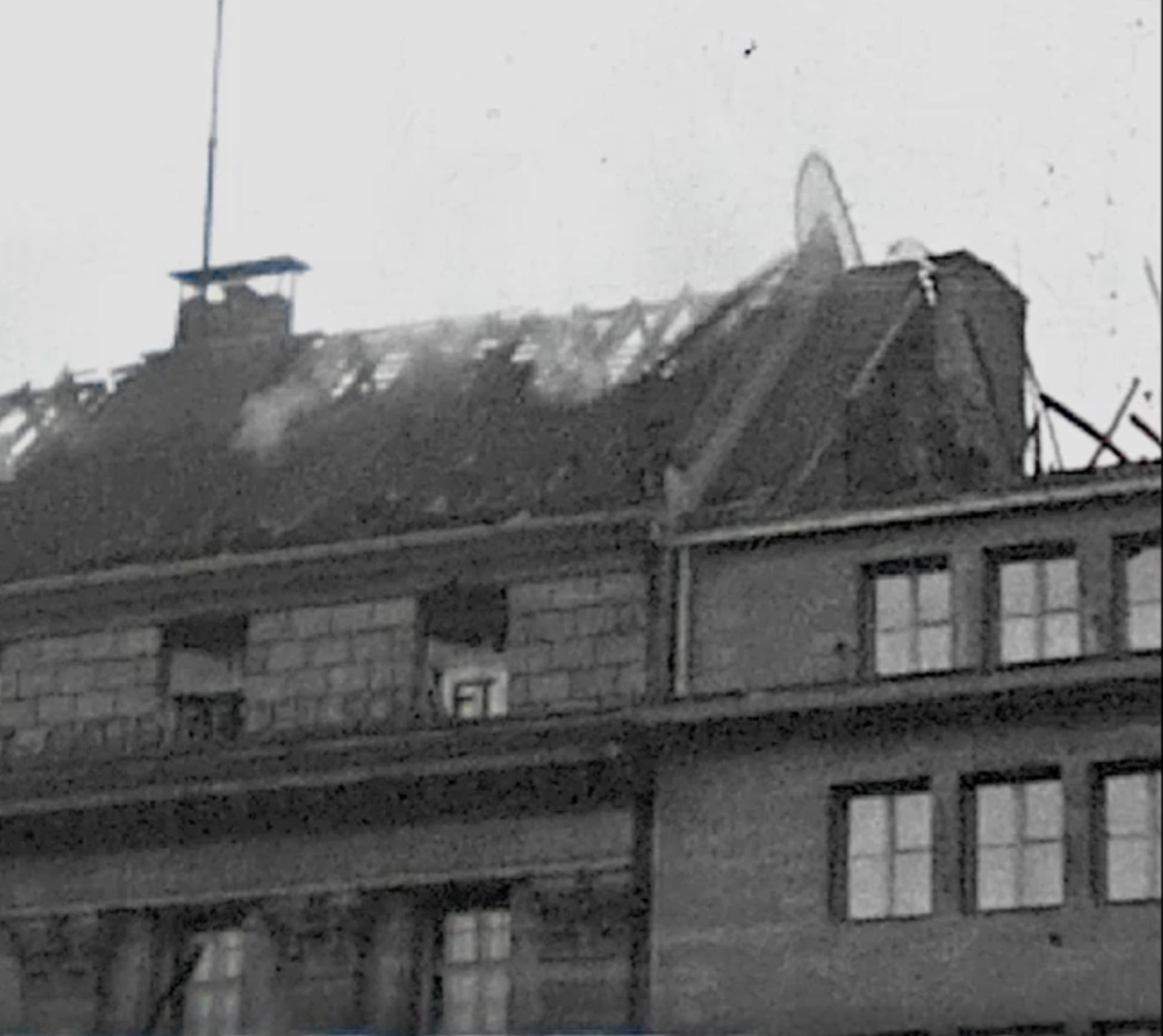

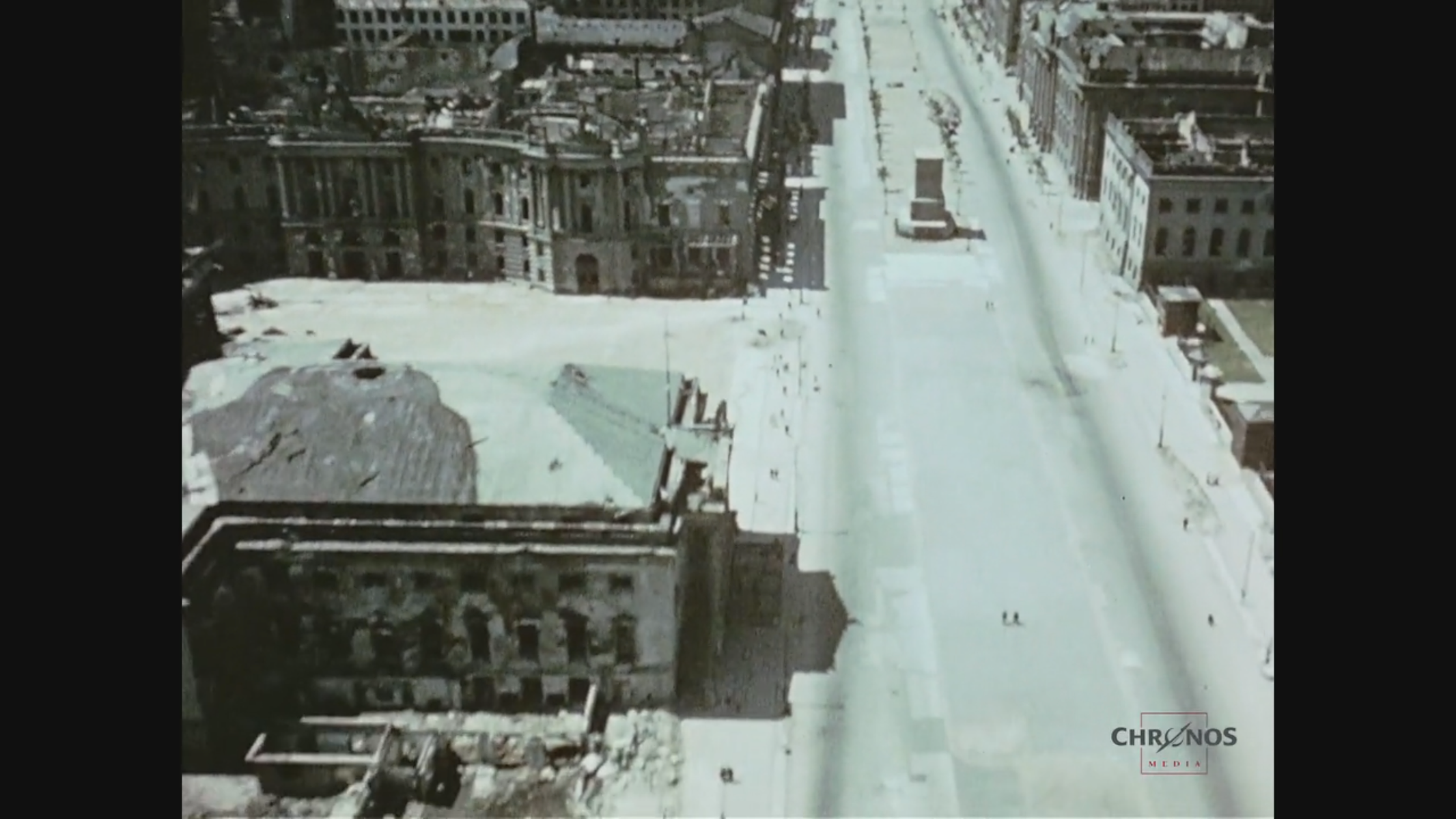

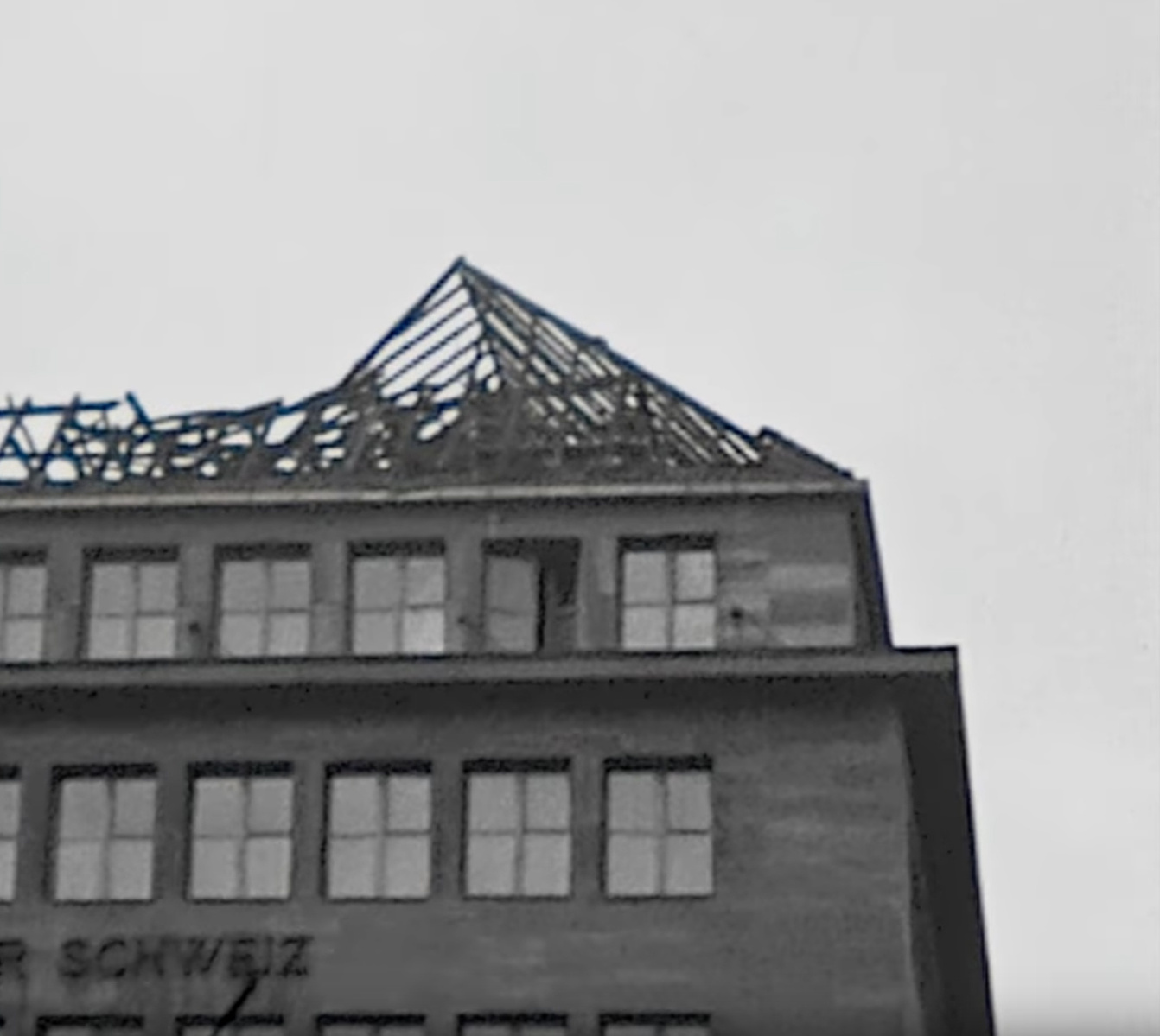

[In this colour view the blackened burned-out façade of the Swiss House after the war is evident.]

Photo: still from film. Framepool.]

[Berlin after World War II - 1946: cars and people move again over Unter den Linden, with the ruins of the Victoria and the Haus der Schweiz as a mute reminder of the bombings and battles.]

[Photo: © Landesarchiv Berlin.]

The employees of the Swiss companies, which until 1945 had had their headquarters in the house, had largely fled in the turmoil of the last years of the war from Berlin, but the house remained the property of the “House of Switzerland GmbH”.

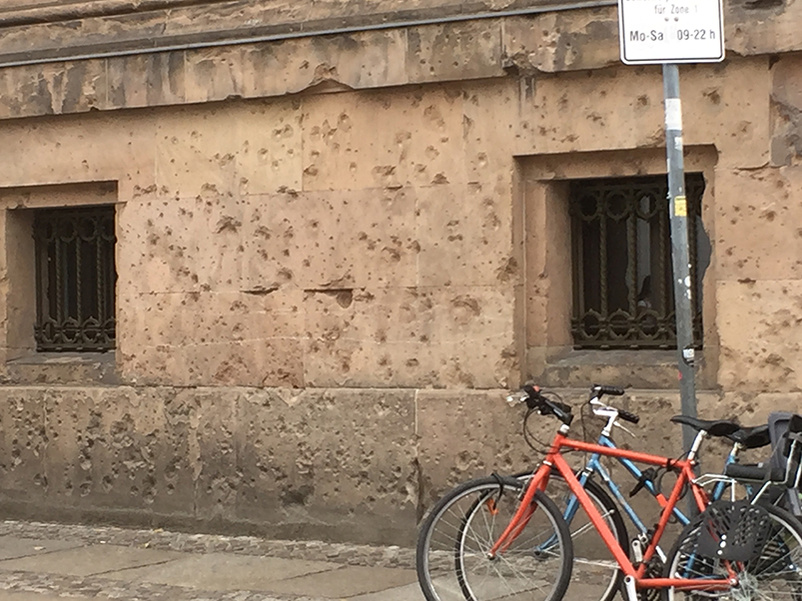

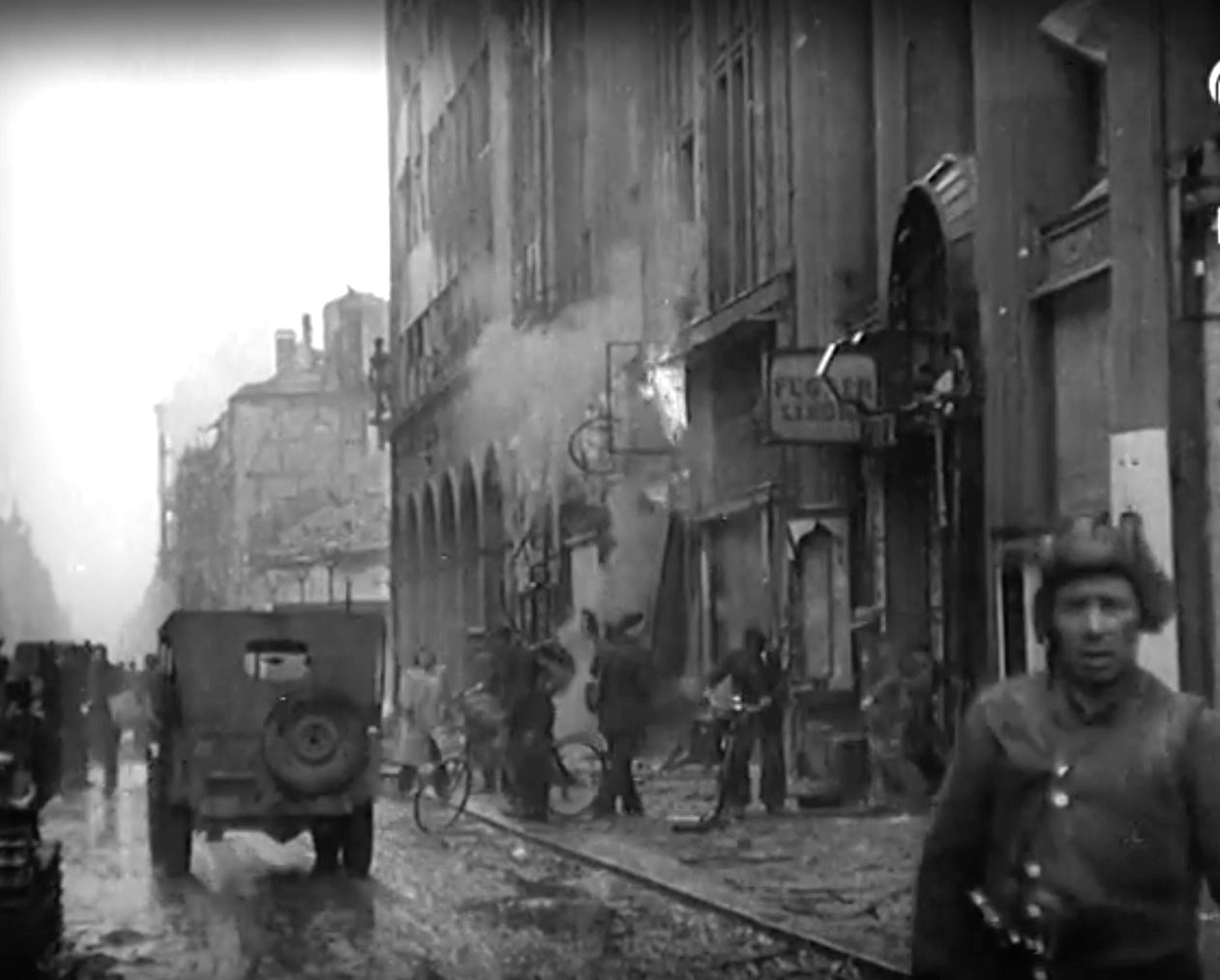

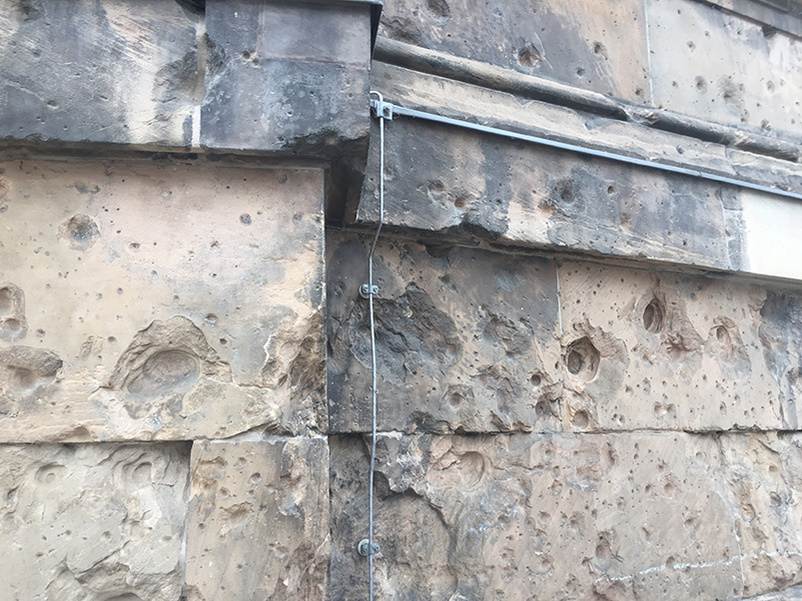

[The remains of the building just after the war’s end. Notice the splinter shells from the battle on the arcade and façade, and the Russian military police armed with rifle assigned to traffic control.]

[Photo: still from film. Framepool/RightSmith.]

Photo: Kunstbibliothek, SMB/ Photothek Willy Römer.

When Berlin was divided by two, while the DDR government expropriated the owners of many surrounding buildings, the “Swiss house (…) was administered by the Berlin state housing administration (…) as a foreign property”, as can be seen from a 1952 official note. Apparently, the DDR government did not want to mess with Swiss banks. Nevertheless, they used the house for their own purposes. Among others, the Ostberliner Sparkasse, the German Foreign Trade Bank and a HO food market moved into the shops. The upper floors were rebuilt in the early 1950s for the “Coordination and Control Center for Agriculture, Forestry and Water Management”.

[Reconstruction of the Swiss building, now sited in the new DDR - East Berlin, began in the 1950s. This image is dated on December 8th, 1950.]

[Photo by Rudolf. Bundesarchiv.]

[A picture of the nearly completed and refurbished building as seen in the 1950s.]

[Photo by Rudolph. Getty images.]

[Haus der Schweiz. Unter den Linden Ecke Friedrichstraße by Gustav Köhler in October 1951.]

[Photo by Gustav Köhler.Bundesarchiv. Bild 183-12162-0002.]]

In 1994, a Swiss jeweler opened a branch in the completely renovated Haus der Schweiz, which has since been listed as a historic monument, given it an entirely new interior design.

[Photo: Wikimapia.]
