Bombensturm!
March 18, 2018
When British Bomber Command went to war in 1939 it found itself equipped with a very limited and inadequate arsenal of bombs.
General Purpose GP Bombs:
The high explosive GP (general purpose) bombs, developed from 1935, were the initial arsenal Bomber Command had to carry destruction to Third Reich soil and people, but these had a ineffective performance and their explosive-to-weight ratio was low.
During the first three years of the war, RAF bombers usually flew with a small bomb cargo. In the case of Bomber Command attacking German industries and cities, the normal load were 500-lb (227 kg) and 250-lb GP (114 kg) bombs for hard targets and 40-lb bombs in containers for “soft”, plus the 20-lb (F) anti-personnel fragmentation bomb used mainly on tactical missions. For the 20-lb and 40-lb bombs, purpose-made packing pieces secured the individual bombs as a cluster within each partition. This early series of HE bombs used an explosive mix called ‘Amatol’, a mixture of TNT and ammonium nitrate.
[Groundcrew of a Polish Air Force bomber squadron, very likely of No. 300 Squadron, scribbling their best wishes to the enemy on a 500-lb GP bomb at RAF Hemswell, 15 August 1941. The
inscription in Polish reads: ‘Warszawiacy Berlinowi - From Varsovians for Berlin’. 300 Sqn crews bombed Berlin for the first time during the mission made on 21 March 1941.]
The initial British trio of bombers -Wellington, Whitley and Hampden- were lumpered by their small capacity of the bomb-bays and by the fact of being twin-engined planes, the more ton of bombs loaded means less fuel capacity. Berlin was at 950 kilometres (590 miles) from London in the very extreme range of RAF ‘twins’. For example, the max bomb-load of a Vickers Wellington was 4,500 lb (2,041 kg) of bombs, but this figure was reduced to only the half when the type attacked Berlin to be able to reach it.
The size of bomb-bays in RAF aircraft and the perceived chance of a hit were both real considerations in this early period. During 1940, use of the smaller ordinance (over 2,000 20-lb F; over 26,000 40-lb GP; nearly 62,000 250-lb GP) far outstripped that of the 500-lb GP (just over 20,000).
[Armourers fit fuzes to 250-lb GP bombs on their trolleys, prior to loading into Handley Page Hampden Mark I, P1333 EA-F, of No 49 Squadron RAF at Scampton, Lincolnshire. P1333 never
reached Berlin, being destroyed returning from a raid on Merseburg, Germany on 17 August 1940].
At the beginning of the war, HE (high explosive) bombs were considered the best weapon to use, with incendiaries employed in small numbers as a harassment measure; but the change in the bombing tactics from industrial targets to civilian and ‘area’ targets led the way to a mixed load comprising a much higher ratio of incendiary bomb to HE during the final years of the conflict.
[WAAF (Women’s Auxiliary Air Force) driving a Fordson tractor pulling a train of full GP-bomb trolleys at RAF Mildenhall.]
In those early days of the conflict, RAF bombs were painted in a light tan colour, later orange yellow and finally dark green.
The 250-lb and 500-lb GP bombs were still extensively used in 1941, until the more capable high explosive bombs were developed and brought into use. All these bombs became available in quantities too large for the existing bomber force in use; the RAF had the bombs but not enough bombers to use them against the Reich. For example, in October 1941 there were unused stocks of 121,000 tons of bombs at Britain depots.
[Armourers wait for the conclusion of an engine test on Short Stirling Mark I, OJ-N, of No 149 Squadron RAF, parked at the end of the south-east runway at Mildenhall, Suffolk, before loading her with 250-lb GP bombs for a night raid on Essen, Germany. Each bomb has been fitted with a shackle to enable it to be winched into position in the Stirling’s high bomb-bay.]

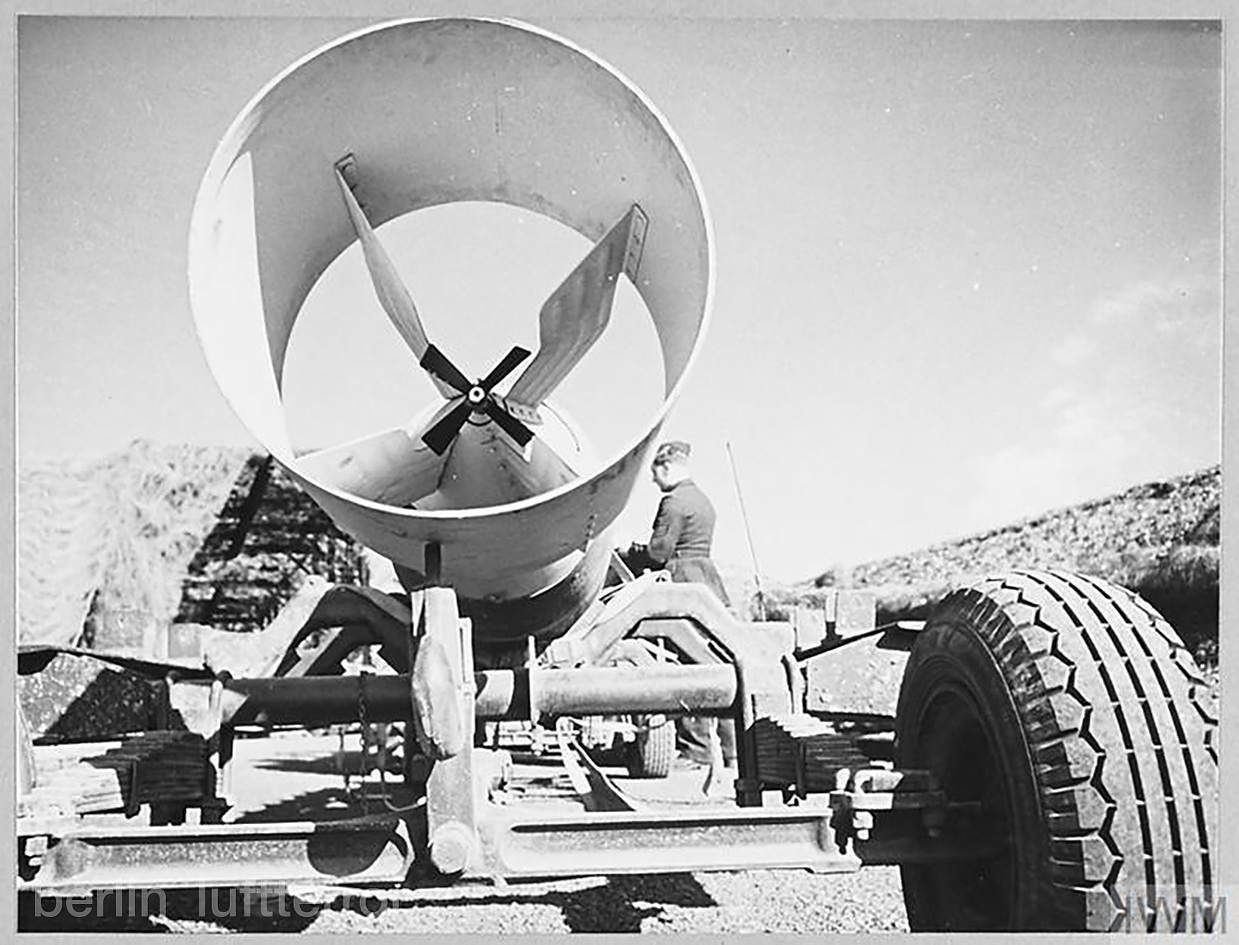

[Tail end of a bomb trailer: a rear view of an 1000-lb GP bomb en route for the carrying aircraft ready for a raid on Axis targets.]
[Bomb bursts straddle the machine workshops in the naval arsenal as another stick of 500-lb GP-bombs falls toward the target area during a daylight raid on shipping and installations by Venturas of No 21 Squadron RAF on Brest, France.]

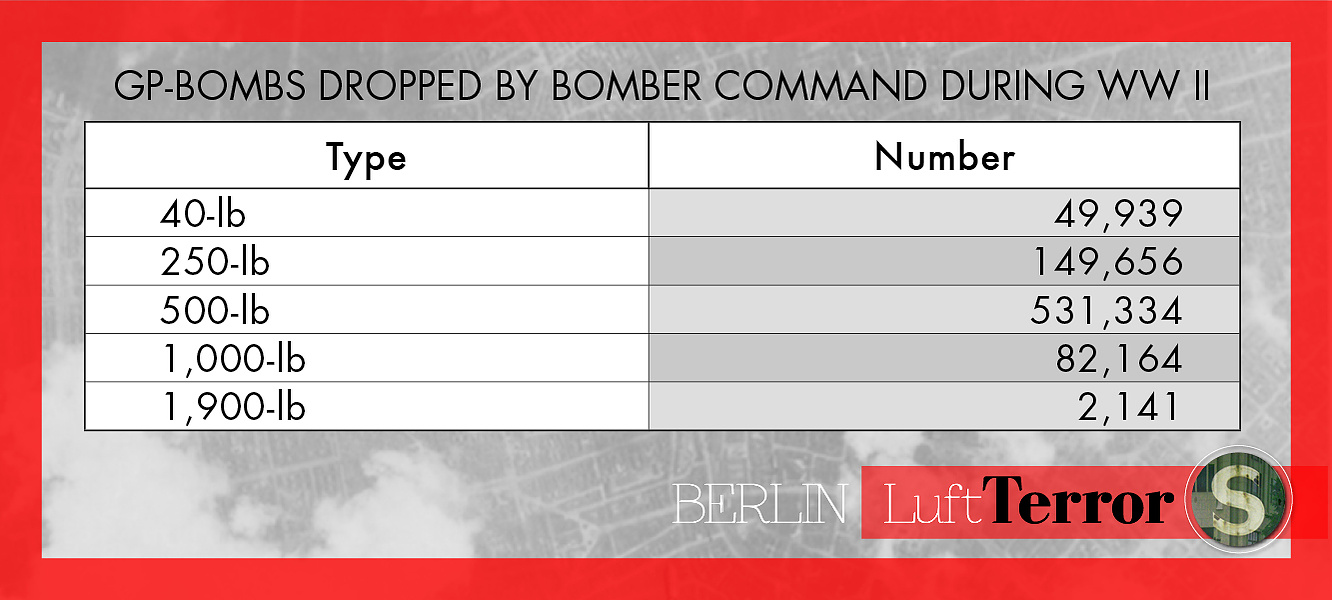

This table shows, by type, the number of General Purpose bombs dropped by RAF Bomber Command during World War 2. Source: Burls, Nina. RAF bombs and bombing. ROYAL AIR FORCE HISTORICAL SOCIETY. Journal 45. 2009.
The GP bombs had a high detonation-failure rate (10-15%) and the introduction of the heavy four-engined bombers such as the big Short Stirling just augmented the ton of explosives dropped on the Third Reich, not the effectiveness of the raids.
In conclusion, during 1940-41 RAF Bomber Command was inadequate to destroy such a large city like Berlin was and tried to grow the number of raids against the capital, all of which did little damage. This gonna led to two vital changes: the development of the more potent MC and HC bombs, and the introduction from mid 1941 of the new heavy four-engined bomber force.
_______________
Source:
- Air ministry. RAF Armament Volume I: Bombs and Bombing Equipment. 1954.
- Bowman, Martin W. (2016). Nachtjagd, Defenders of the Reich 1940-1943. Pen & Sword Aviation.
- Bowman. Martin W. (2014). Voices in Flight: the heavy bomber offensive of WW2. Pen & Sword Aviation.
- Bowman, Martin W. (2015). Voices in flight: RAF Night Operations. Pen & Sword Aviation.
- Boyd, David. 1000 lb Medium Capacity Bomb. <http://www.wwiiequipment.com>
- Falconer, John. (1998). Bomber Command Handbook. The History Press.
- Overy, Richard. (2013). The Bombing War: Europe, 1939-1945. Allen Lane.
